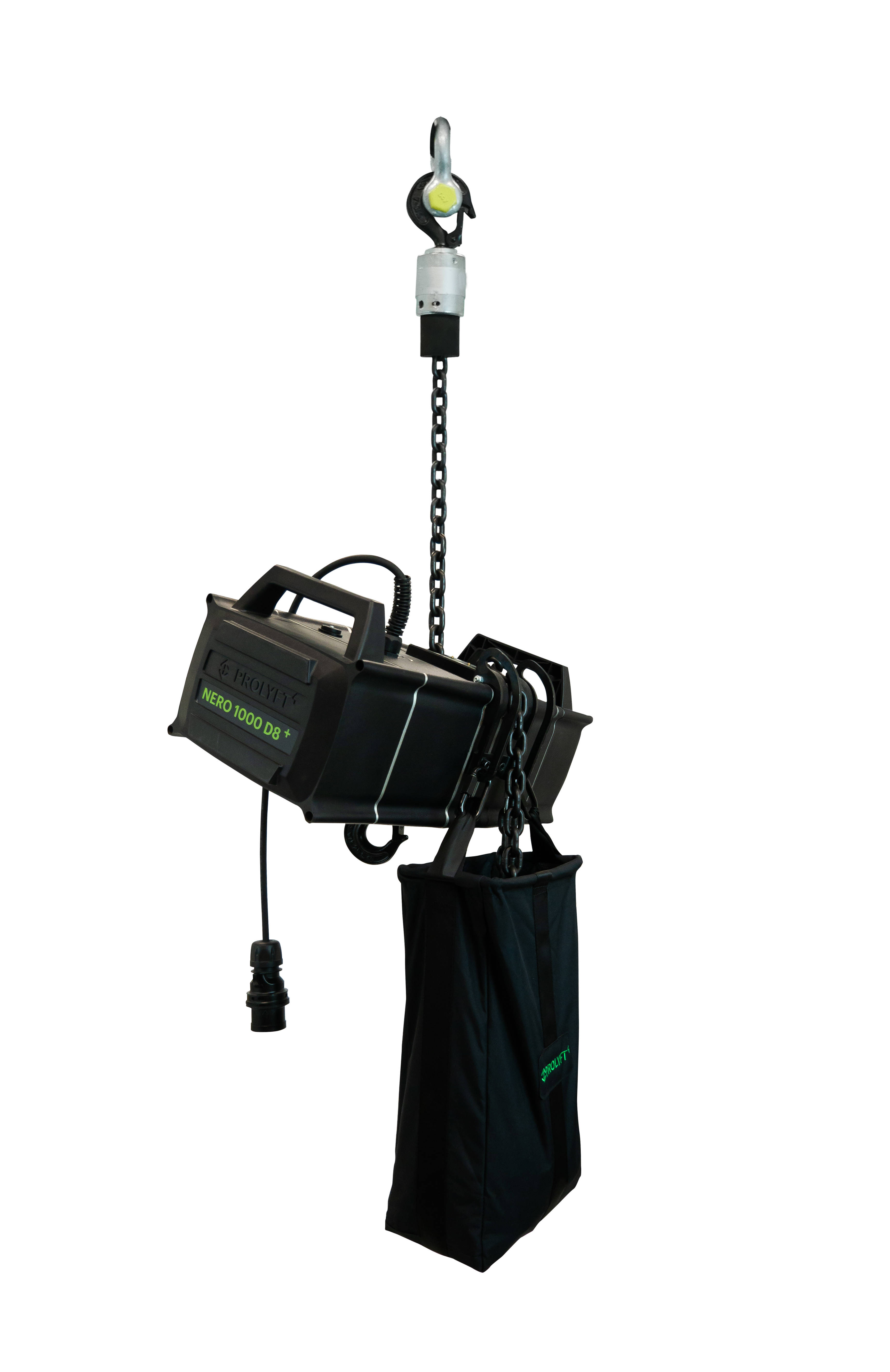

NERO Hoist 1000 kg
The Prolyft range is standard with a black chain. Standard on the low voltage and the direct control is the unique outside limit switch which it makes it very easy for the riggers to set limits on their rig positions. The RFID-tag which is on the hoist is the link to the database where the complete log of the specific hoist is saved.
COMPETENCES:
Unique database, registry & service software suite.
Lifetime warranty.
Quality manufacturing in the EU.
Certified products, comply to latest world standards.
Complete assortment with all accessories available.
Local availability.
Worldwide network of Service Points.
Find a Local Dealer
Need help?
Need advice about one of our products or services? Find out on our
Prolyte Campus
page.
Contact us
Technical Specification
Advantages
Technical specifications Nero 1000 kg hoist
Load capacity
1000 kg
Model
D8+
Type of Control
Direct or Low Voltage
FEM Class
2m
Duty Factor
40%
Starts per Hour
240
Breaking time / 10 years
6300 h
Falls of Chain
1
Type of Chain
DIN EN 818-7 - type DAT - Zinc galvanized steel 80 grade
Size of Chain
8x24mm
Chain Self-Weight
1.39 kg/m
Safety Factor
8.1
IP rate
55
Insulation Class (Temperature Class)
F in according to CEI 15-26
Load Wheel
5 pockets
Noise Level
67.5dB @ Full Load
Connection Cable Length
(75 ± 5) cm
WLL
1000kg
Frequency
50 Hz
Motor power
1 kW
Number of brakes
2
Brake Size
08
Self-weight
43kg
Lifting Speed
4m/min
Standard with a black chain for the complete range.
Outside limit switch on low voltage and direct control.
Soft stopper, easy to position on a random place on the chain.
Fixed bracket allowing chainbag to move position related to use the motor-up or motor down.
The RFID-tag which is on the hoist, is the link to the unique and completely upgraded database.
Database with all the certificates and complete history of the hoist.
Low noise level: 67.5 dB at full load.
Damage reducing housing design, with hand grips integrated in cover trough and through coloured plastic covers.
