From Verto H30 to Verto H40

As the new Verto coupling system becomes popular and increasing demand for higher loading capacity Verto Truss, Prolyte decided to invent in Verto 40 series, including Verto 40V and 40R.

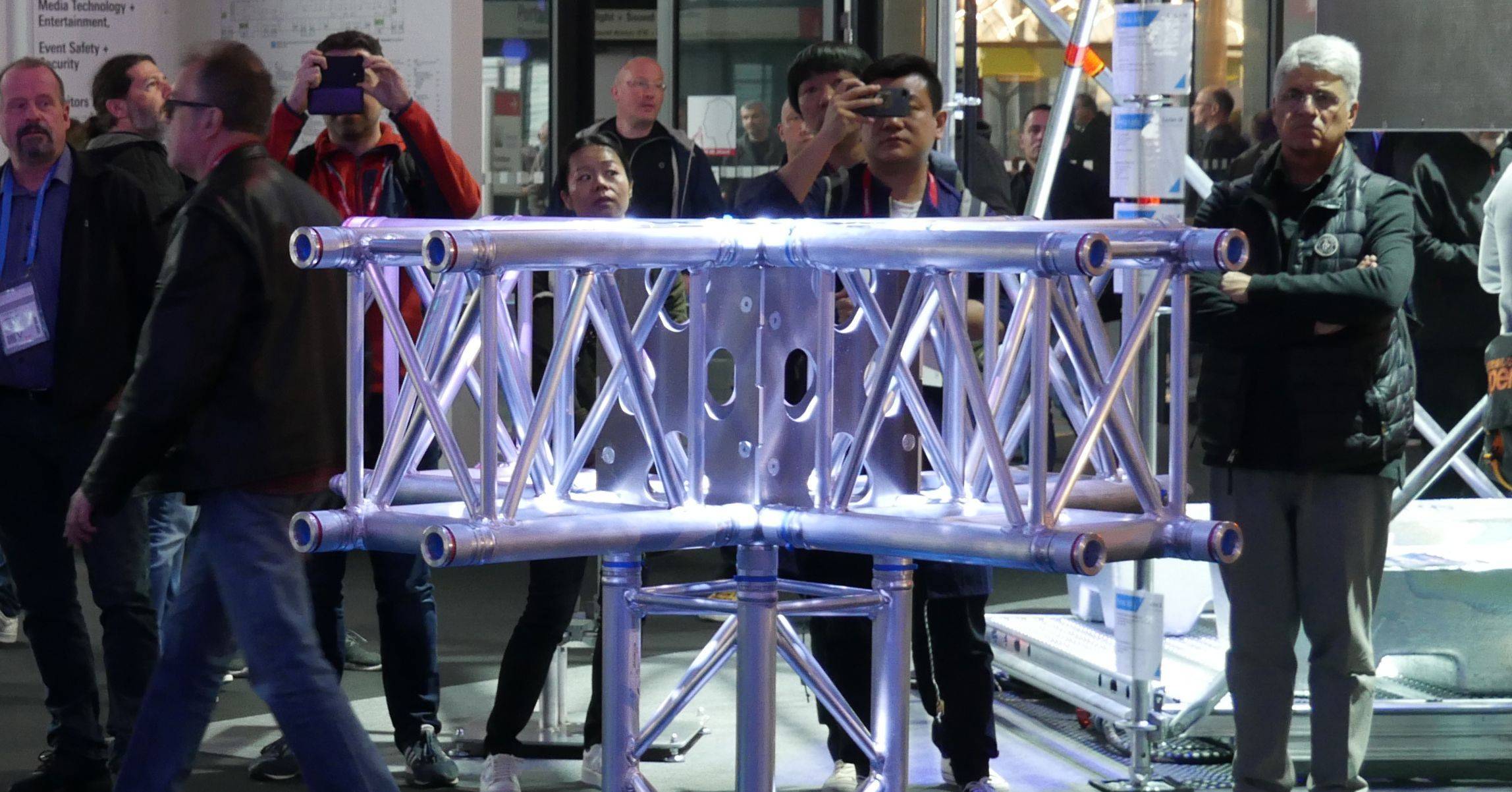

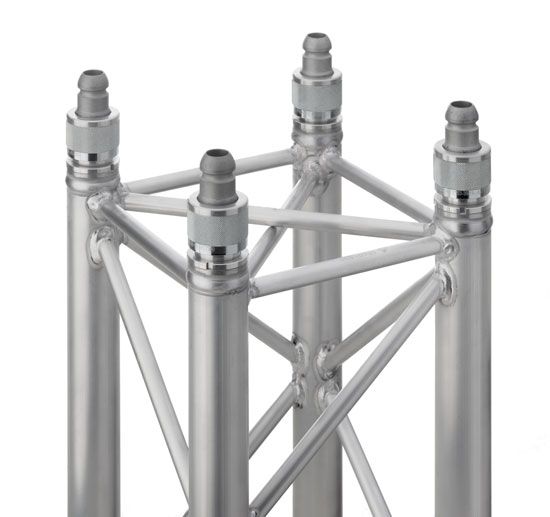

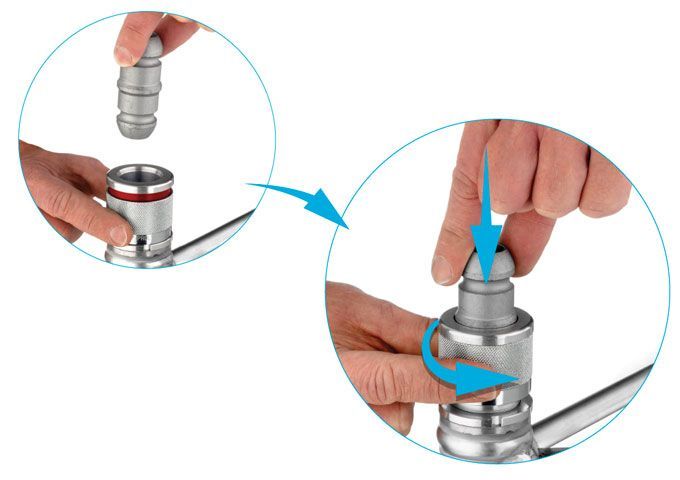

Inherited from Verto 30V, Verto 40 series remains the advantages of fast connection, silent and safe.  A simple flick of your wrist will connect the truss sections. The Verto truss is designed as an additional system, for those circumstances where its specific characteristics come into play, like the silent connection and reduced assembly time. Its structure resembles that of the standard H40V truss. The success of Verto 30 series can be found in cases: LA Auto Show, Audio Engineering in Africa,


Check out Verto coupling system video


Advantages

  • Tool-less system, no tools needed for assembly and disassembly
  • No protruding parts, ideal for attaching banners or drapes
  • Bringing safety to the work floor – its silent connection adds greatly to work floor communication
  • Incredible fast connection and disconnection, reducing production time
  • Strong and compact, based on the H40V and H40R truss with similar loading capacity
  • Coupling parts can be replaced, prolonging the general lifetime of your truss
  • Versatile system with many application possibilities, the additional box corner completes the system



Verto H40V and H40R

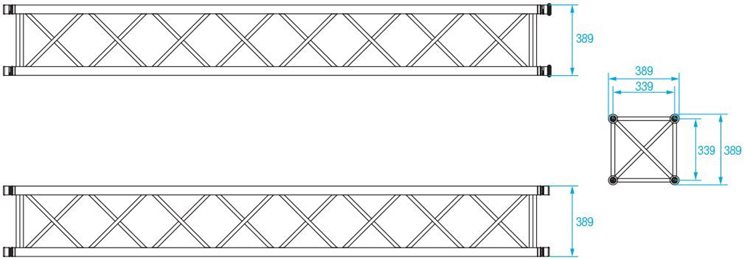

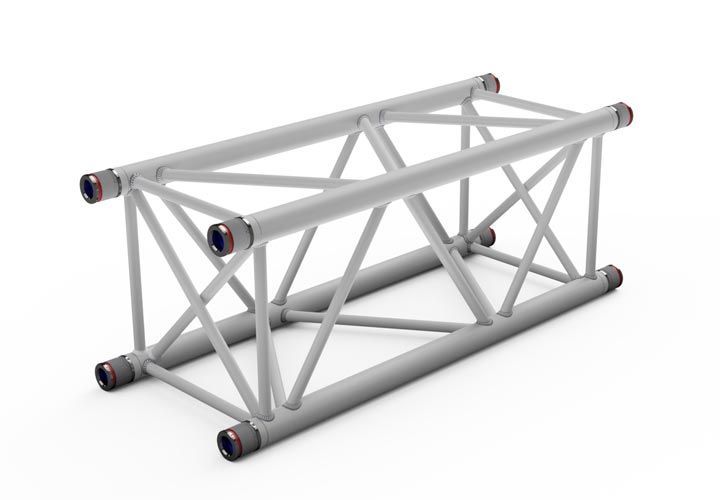

Verto H40V


Verto H40V Series is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). With thicker braces, the Verto H40V offers extra strength compared to the Verto H30V, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. Strong and compact, based on the Prolyte H40V truss with similar loading capacity





Technical Specifications - Verto - H40V
Type     VER-H40V
Alloy     EN AW 6082 T6
Main Tubes (Chords) 48,3 x 3 mm
Braces     20 x 2 mm
Coupling System Verto, CrMo4

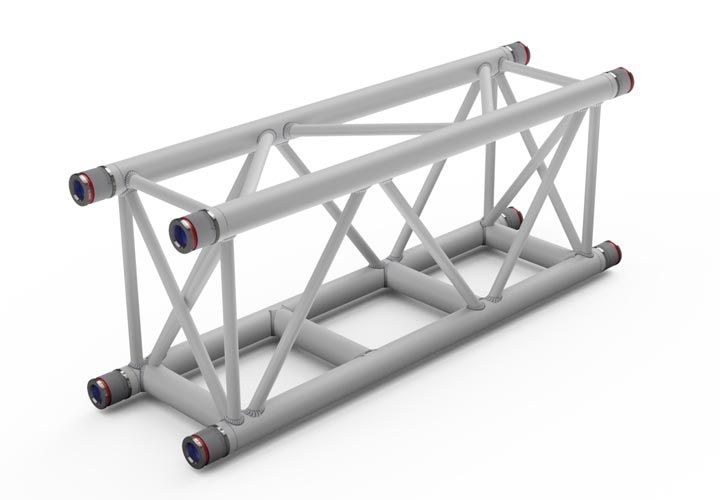

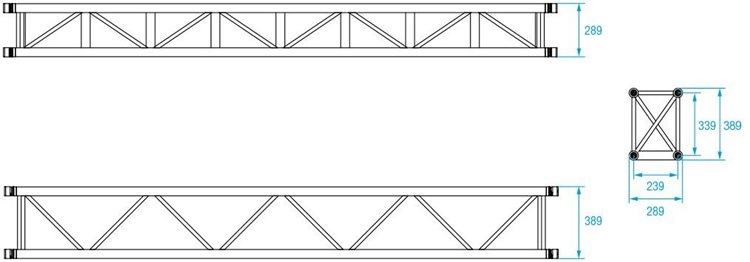

Verto H40R

The Verto-H40R has a clever program of specifications; compact and strong, and three-sided webbing. The thicker braces on the bottom side allow easy mounting of moving heads and central loading, reducing the torsion effect resulting from one-sided loading in standard trusses. Strong and compact, based on the
Prolyte H40R truss with similar loading capacity





Technical Specifications - Verto - H40R
Type     VER-H40R
Alloy     EN AW 6082 T6
Main Tubes (Chords) 48,3 x 3 mm
Braces     20 x 2 mm
Coupling System Verto, CrMo4
