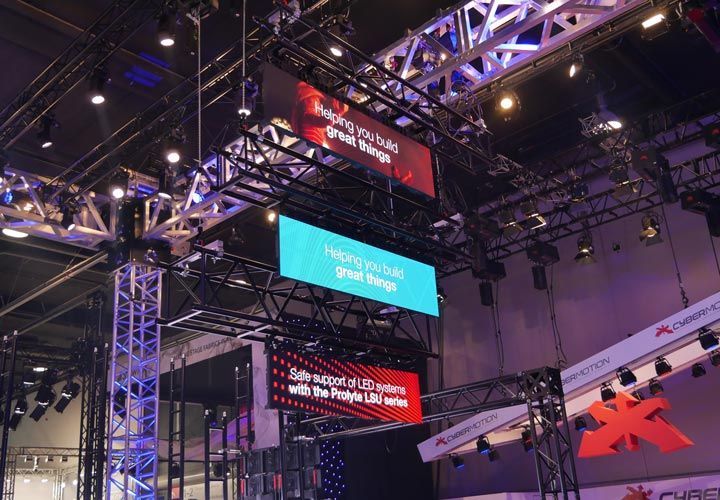

If you want to fly your LED system, you have the choice of two truss types. All of these trusses are equipped with a middle beam.
Both truss types are fully compatible with the regular truss series and can be combined in one grid.

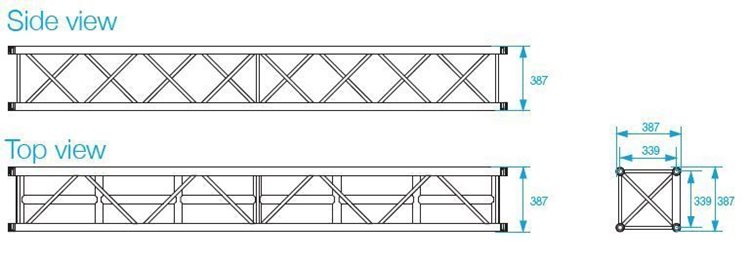

H40V MB series
Catalogue number: H40V-L100-MB

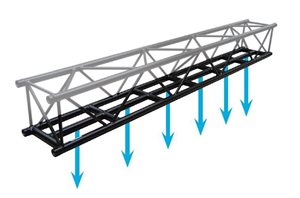

H40 MB Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 MB truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape.
The H40V MB series is fully compatible with the regular
H40V truss series and can be combined in one grid.
Advantages
- Fast and easy assembly
- Lightweight system
- Versatile application
- Cross bracing
- Can be combined with standard H40V
- Load in the centralised in the truss section
| Technical Specifications - H40V MB series |
|
| Type |
H40V MB |
| Alloy |
EN AW 6082 T6 |
| Main Tubes (Chords) |
48 x 3 mm |
| Braces |
20 x 2 mm |
| Coupling System |
CCS6 |
| Standard available lengths and codes H40V MB series |
|
|
| Metres |
Feet |
Code |
| 1,00 |
3,28 |
H40V-L100-MB |
| 1,50 |
4,57 |
H40V-L150-MB |
| 2,00 |
6,56 |
H40V-L200-MB |
| 2,50 |
8,20 |
H40V-L250-MB |
| 3,00 |
9,84 |
H40V-L300-MB |

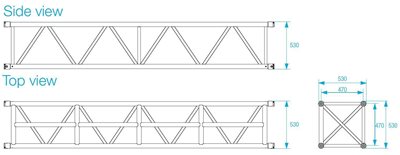

S52SV MB series
Catalogue number: S52SV-L100-MB
S52 MB Series truss is constructed of main tubes (50 x 4 mm) and diagonals (30 x 3 mm). Equipped with the CCS7 conical coupling system, the S52 MB truss is fast and easy to assemble. The S52 truss offers a strong truss with a very high loading capacity. The clever pin orientation guarantees fast and foolproof assembly. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape.
The S52SV MB series is fully compatible with the regular
S52SV truss series and can be combined in one grid.
Advantages
- Clever pin orientation
- Fast and easy to assemble
- Very high loading capacity
- Can be combined with standard S52V or S52SV truss series
- Load in the centralised in the truss section
| Technical Specifications - S52V MB series |
|
| Type |
S52SV MB |
| Alloy |
EN AW 6082 T6 |
| Main Tubes (Chords) |
50 x 4 mm |
| Braces |
30 x 3 mm |
| Coupling System |
CCS7 |
| Standard available lengths and codes S52SV MB series |
|
|
| Metres |
Feet |
Code |
| 1,00 |
3,28 |
S52SV-L100-MB |
| 1,50 |
4,57 |
S52SV-L150-MB |
| 2,00 |
6,56 |
S52SV-L200-MB |
| 2,50 |
8,20 |
S52SV-L250-MB |
| 3,00 |
9,84 |
S52SV-L300-MB |
