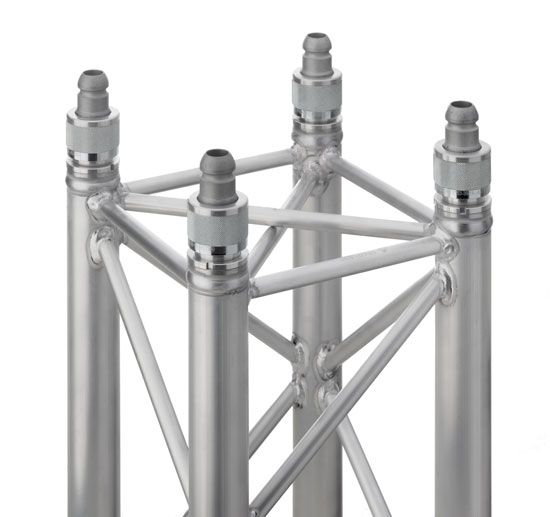

Verto – 30 series truss

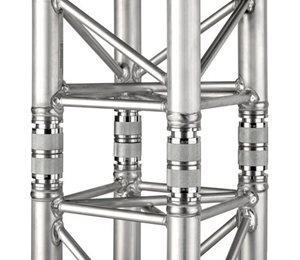

This truss can greatly benefit the daily working practice for technicians, its tool-less connection is almost completely silent, thereby greatly adding to safety on the work floor. It is extremely suitable for Indoor events, like in hospitality or exhibition venues, where silent build and break will make double duty of venue halls possible.



Check out Verto Truss introduction video

Why invest in Verto truss with a new coupling system

• Ease of use
  • No tools needed

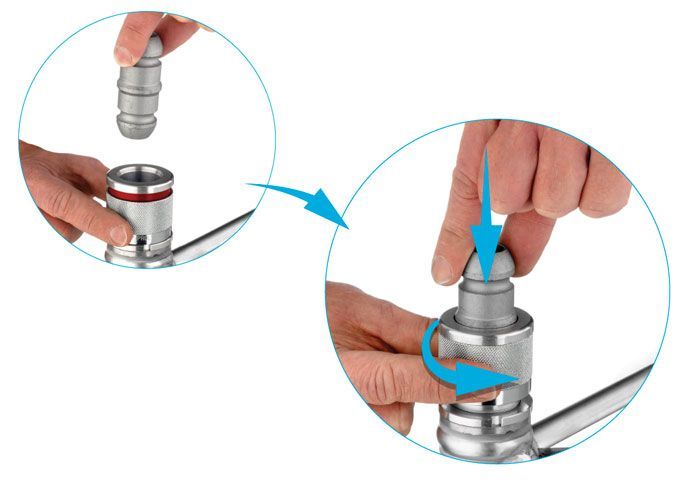

  • Connects with a 180dgr twist lock
  • Almost no loose parts
  • No pin direction
• Speed of use
  • Considerably faster than any other connecting system
• Reduced sound levels
  • Silent assembly makes double duty possible in venues
  • Silent assembly contributes to work floor safety





• Efficient investment
  • Strong and compact, based on the H30V truss with similar loading capacity as well as standard rental fleet trussing (can be combined with existing H30V truss)

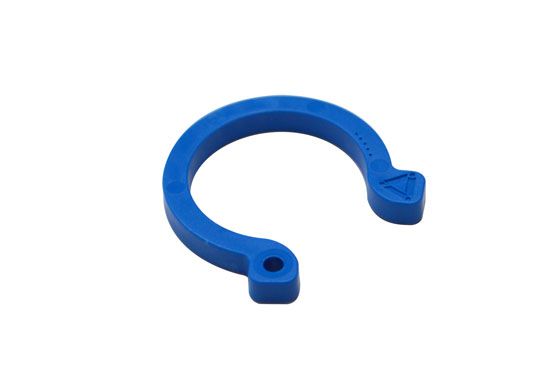

  • Red ring to indicate the system is still open
  • No consumables like pins and spigots
  • Coupler can be replaced if needed - prolonging the general lifetime of your truss
  • Incorporated dirt-repellent system
  • Versatile system with many application possibilities, the additional box corner completes the system.
• Vanguard position
  • Investing in this revolutionary technique will give your company a lead position
  • Investing in a technician friendly truss is a good promotional tool
  • Customers will regard your company as progressive
• Verto truss is TUV certified following the new Eurocode regulations

Verto Product Range

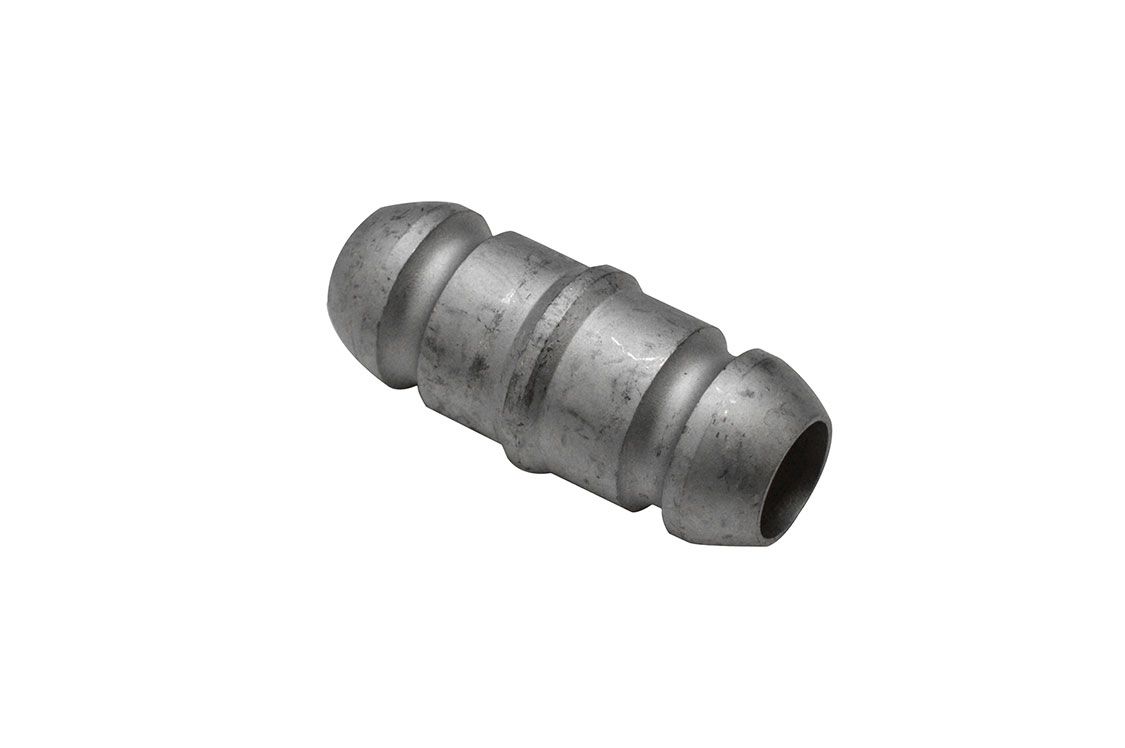

VER6 - 605	VER6 - 600	VER6 - 652S

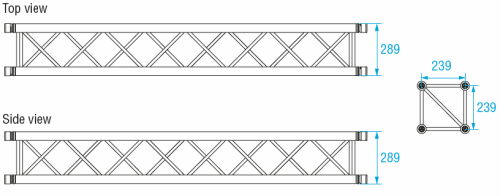

Technical Specifications - Verto

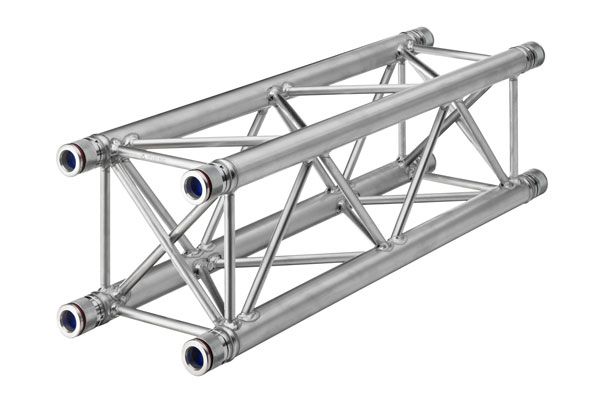

Type	VER-H30V
Alloy	EN AW 6082 T6
Main Tubes (Chords)	48,3 x 3 mm
Braces	16 x 2 mm

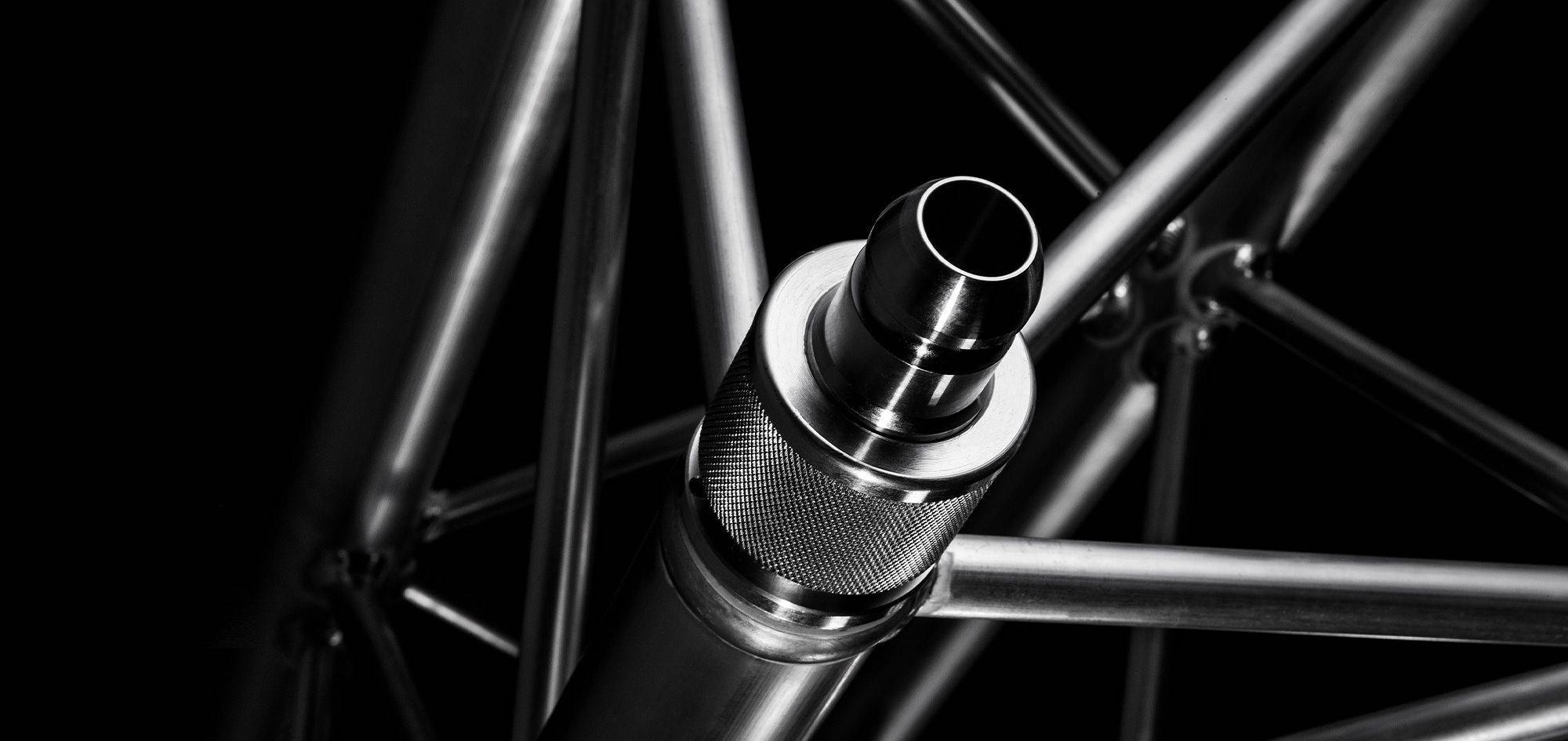

Coupling System	Verto, CrMo4




Video

Verto Speed Challenge



Verto Truss: The making of

Inventions like the Verto system don’t come of the shelf. The R&D of the Verto system was a long process; encompassing the design of a new coupler system, but also the design and adaptation of the manufacturing process, user feedback, system testing, static calculations and patenting.
