In this section, we introduce one of our popular stage systems - the Prolyte Arc Roof. The Arc Roof is a fixed construction, based on three inward-curving trusses that are mounted to side masts. Special corners connect the arches to the main grid. Different configurations are made possible by simply changing the arches. The arched trusses have a keder profile on top for fitting the optional canopy. It is suitable for small to medium temporary events. Arc Roof comprises a range of multiple sizes and dimensions (6x4, 8x6, 10x8).
Download product sheets at the bottom of this page for technical details.

Why choose Prolyte Arc Roof

  • Versatile application
  • Easy to handle, quick setup
  • Significant loading capacity
  • Ideal for smaller events
  • Extra options available

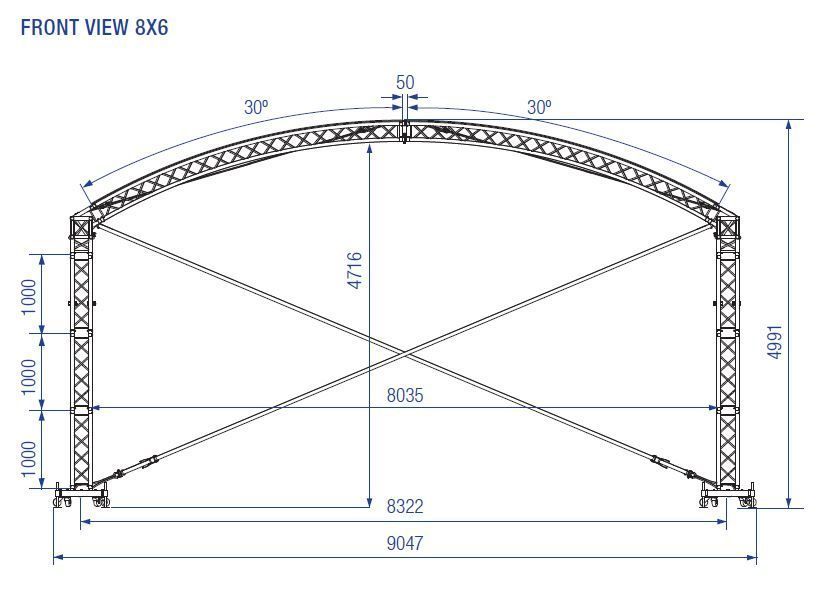

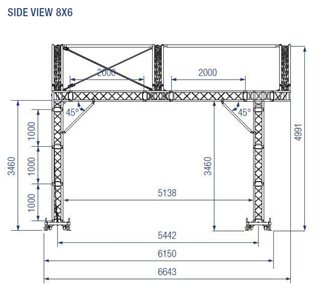

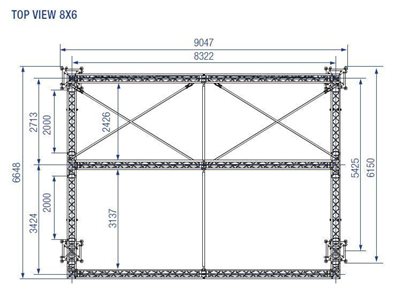

Structure - Arc Roof 8x6
Main grid H30D
Towers H30V
Roof structure Arc Roof
Stiffening Guy wires + Pressure bars
Loading capacity
Description Type     Totals
Towers     UDL     1950kg
Roof structure CPL     950kg
  Point load combination 2100kg
PA wing CPL per wing 1000kg

Check out the build of Prolyte Arc Roof's video

Have a look at Arc Roof experience from the users

Jim Brown, General Manager, Pearce Hire says  “We were particularly attracted to the Arc Roof system because of its well-considered assembly process which is critical to the challenging set-up times our client projects often involve,”

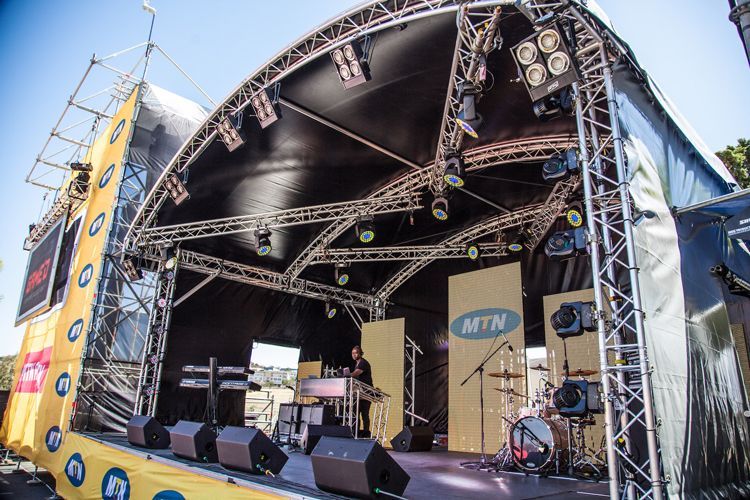

Prolyte's Arc Roof System used by MGG at Comic-Con Africa - DWR Distribution (South Africa)

"The outdoor MTN Zone proved to be a popular venue with MGG erecting their Prolyte Arc Roof for jam-packed entertainment that included live music and SA’s favourite DJs. "

Download product sheet Arc Roof 6x4

Download product sheet Arc Roof 8x6

Download product sheet Arc Roof 10x8
