The proper and safe support of LED systems is an issue many production or rental company seems to struggle with. Due to the dimensions of the LED systems, this often results in either unbalanced loading or unstable LED walls. Prolyte has published a range of blogs on this issue.
Check out the LED screen rigging blogs:

LED screen rigging: lethal factor or professional approach?

Rigging LED screens

Build your LED system from ground level

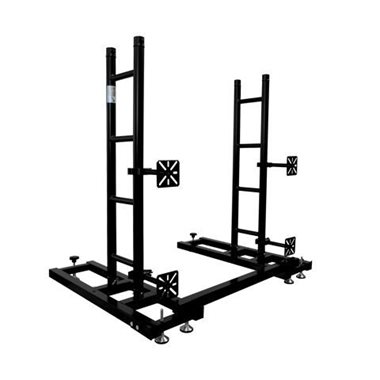

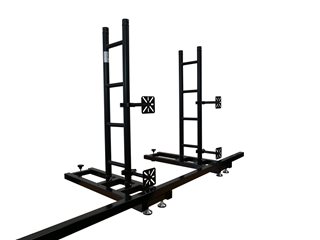

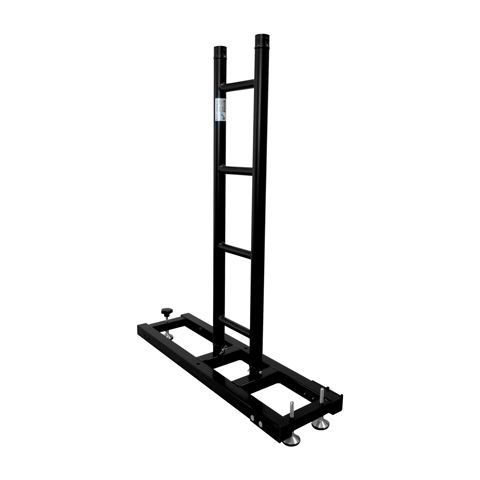

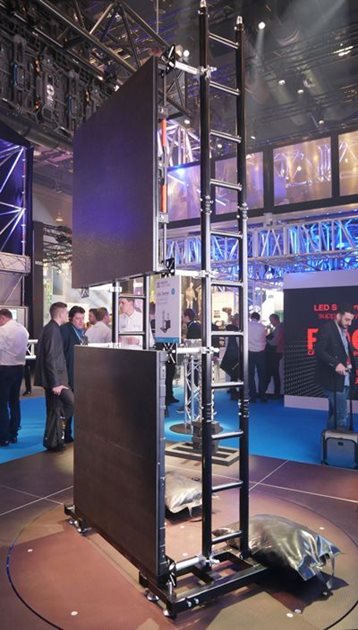

The LSU series is a range of products to facilitate the safe erection or suspension of LED systems. The LSU offers solutions for either suspending your LED systems or building LED systems from ground level. Whatever your type of screen is, Prolyte offers a universal solution, the LED Stack system. This combination of a base-unit, connection bar and ladder truss, creates a very stable system to support you LED screens in various configurations and offers flexibility in height as well as width

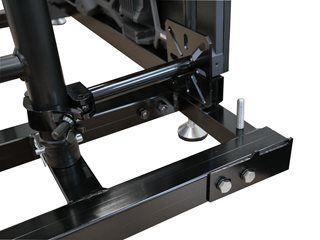

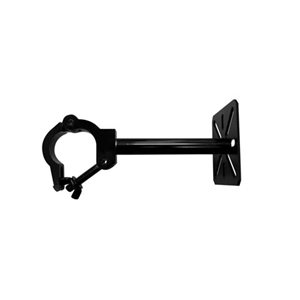

 A side-entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quick and easy.

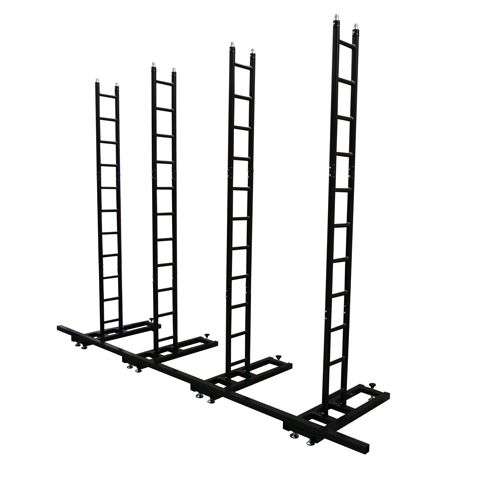

By using longer connection bars, you can easily extend your screen with another row of panels.

Using the adjustable feet in the front and back of the base unit, you can safely level the system, so your screen is completely straight.








Technical Specs

  • All items standard coated black, RAL9005.
  • Base unit: 50x50mm profile
  • Coupling system: CCS6
Adjustable spindles M12
Ladder truss H30L with straight bracing 30x3mm
  • Connection bar: 50x50x4 profile

Available ladder truss lengths

  • LSU-30L-L050
  • LSU-30L-L075
  • LSU-30L-L100

Available connection bar lengths

  • LSU-CONB- L100, 1m. length
  • LSU- CONB- L150, 1,5m. length
  • LSU- CONB- L200, 2m. length

Available LED panel adapters

  • LSU-ADAP-03, panel adapter for panels with M8-M12 bolts

Ballast needed

  • Screen of 2 m. height – 17kg/m1
  • Screen of 4 m. height – 130kg/m1


Customer experience:

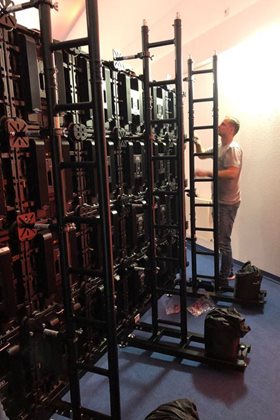

Licht Produktiv

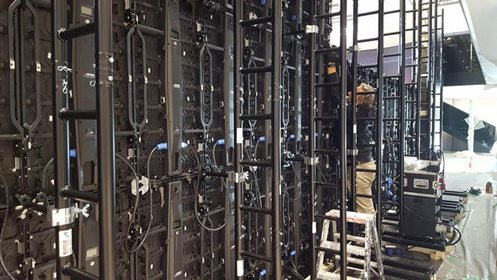

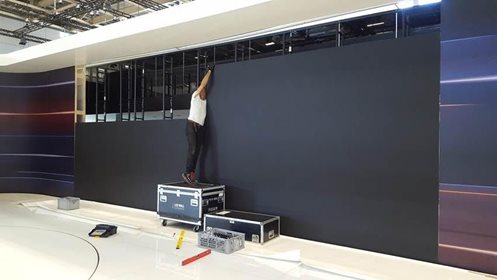

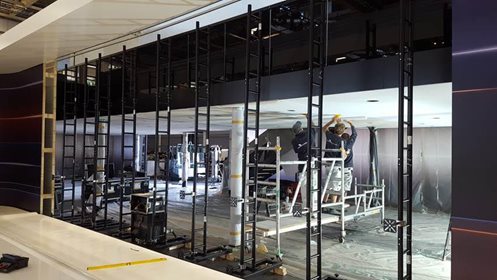

Huss Licht & Ton
