The multipurpose truss range comprises of the X30, H30 and H40 series, from light to medium duty truss systems, available in ladder, triangular, square or rectangular profiles. These trusses are strong, compact, exceptionally versatile, and have low self-weight. Assembly is fool proof due to the
continuous webbing of the diagonals. They are designed for use in the installation, rental and exhibition markets. Powder coating and lengths available on request. X30, H30 and H40 series own
TUV certificates.
Advantages
- Fast and easy assembly
- Lightweight system
- Versatile application
- Worldwide availability
X30 series
X30 Series truss is constructed of main tubes (51 x 2 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the X30 truss is fast and easy to assemble. The X30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities make it well loved and much used. If you're looking for solutions for permanent or semi permanent installations, architectural set pieces, theatre sets, shop displays, studio grids, or showroom applications, the X series truss is your answer. The exceptional strength in relation to their relatively small dimensions of the X truss makes it the ideal solution for complex structures like displays or booths.
| PC-X30V-L100-RAL9005 |

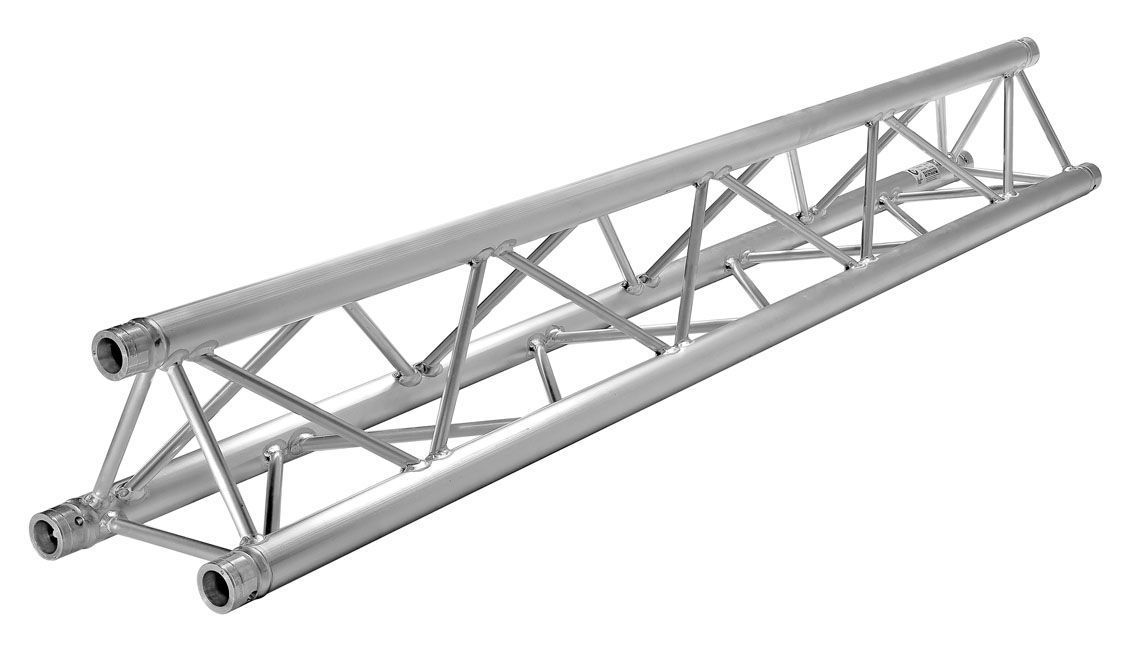

X30D-L200 |

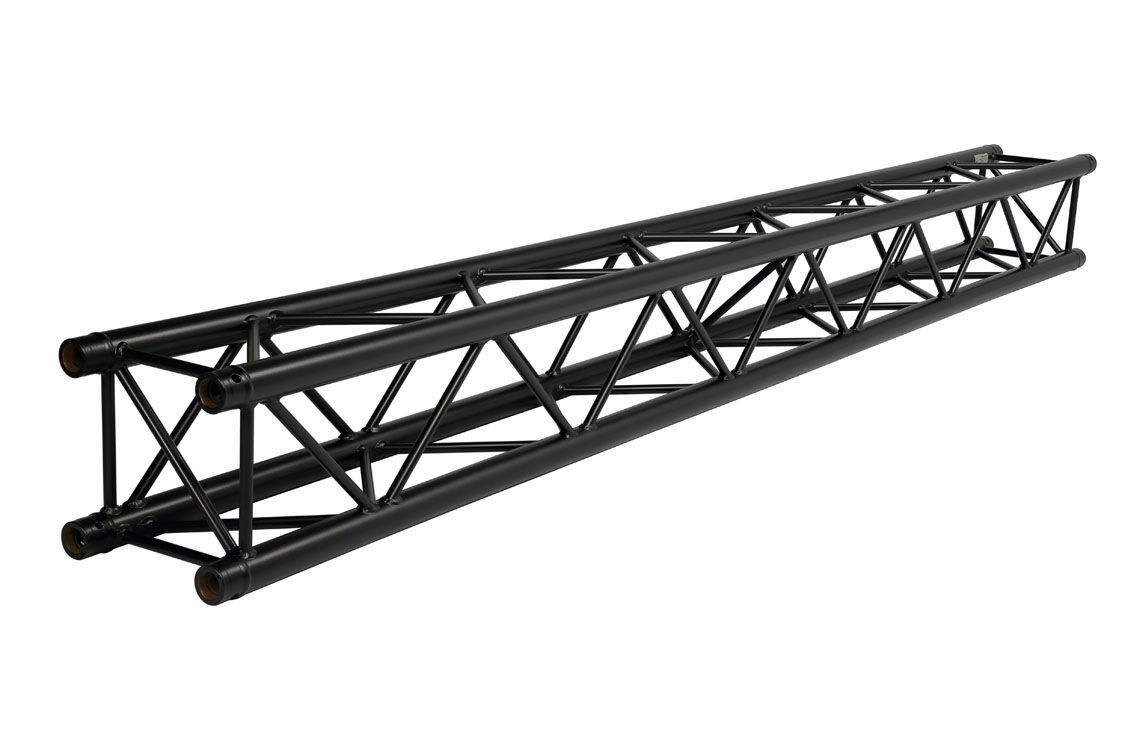

PC-X30V-L300-RAL9005 |
 |
 |
 |
* Click on the image to the product page
| Technical Specifications - X30 Series |
|
| Alloy |
EN AW 6082 T6 |
| Main Tubes |
51 x 2 mm |
| Braces |
16 x 2 mm |
| Coupling System |
CCS6 |
| |
|
Check out X30 series loading tables to find your suitable truss
LOADING TABLE TRUSS TYPE X30L LENGTHS
LOADING TABLE TRUSS TYPE X30D LENGTHS
LOADING TABLE TRUSS TYPE X30V LENGTHS
H30 Series
H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (16 x 2 mm). H30 series has an almost identical appearance with X30 series. Compared to X30 series, it has a thicker wall of main chords, which gives up to 30% stronger than X30 series, specifically on longer spans. The H series trusses are primarily designed for high-frequency users such as rental or exhibition companies, or for semi permanent installations in demanding circumstances like moving lighting rigs in discotheques, stage scenery elements or touring exhibition stands. The higher loading capacity offers extended flexibility to use in different events for more purposes. It is one of the most popular and best sales Prolyte product.
| H30L-L100 |
H30D-L200 |
PC-H30V-L300-RAL9005 |
 |

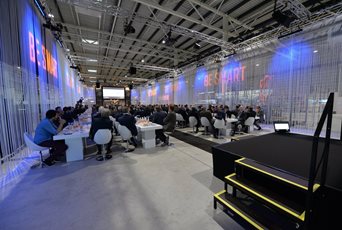

.jpg.aspx?width=261&height=150) |

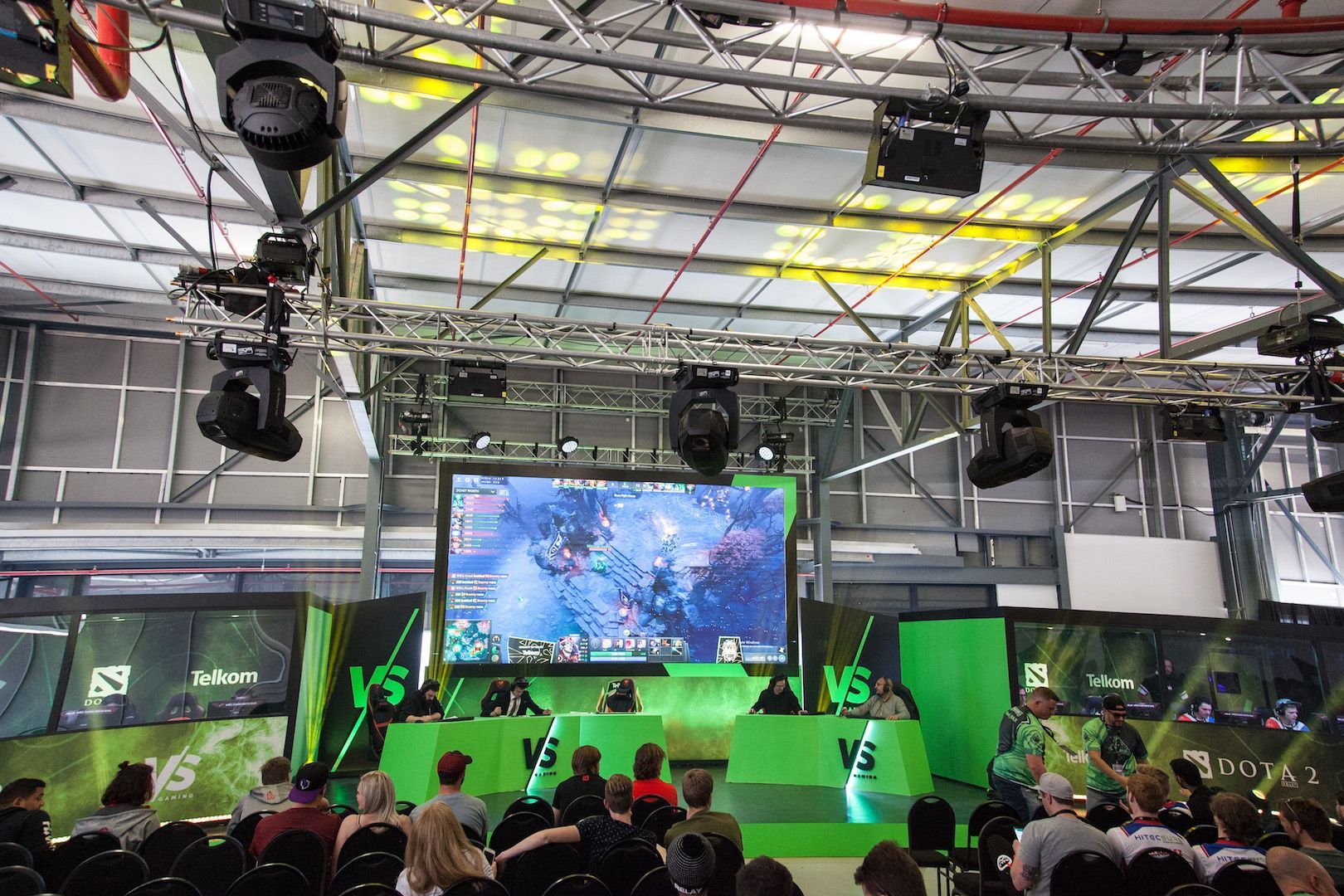

.jpg.aspx?width=224&height=150) |
* Click on the image to the product page
| Technical Specifications - H30 Series |
|
| Alloy |
EN AW 6082 T6 |
| Main Tubes |
48 x 3 mm |
| Braces |
16 x 2 mm |
| Coupling System |
CCS6 |
| |
|
Download H30 series loading tables
LOADING TABLE TRUSS TYPE H30L LENGTHS
LOADING TABLE TRUSS TYPE H30D LENGTHS
LOADING TABLE TRUSS TYPE H30V LENGTHS
H40 series
H40 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm), available in ladder, triangular, square or rectangular profiles.
| H40L-L100 |
H40D-L200 |
PC-H40V-L300-RAL9005 |
H40R-L400 |
 |
 |
 |
 |
* Click on the image to the product page
| Technical Specifications - H40 Series |
|
| Alloy |
EN AW 6082 T6 |
| Main Tubes |
48 x 3 mm |
| Braces |
20 x 2 mm |
| Coupling System |
CCS6 |
| |
|
.jpg.aspx?width=345&height=230)
Download H40 series loading tables
LOADING TABLE TRUSS TYPE H40L LENGTHS
LOADING TABLE TRUSS TYPE H40D LENGTHS
LOADING TABLE TRUSS TYPE H40V LENGTHS
LOADING TABLE TRUSS TYPE H40R LENGTHS
Worldwide Dealer Network
X30, H30 and H40 series are distributed all over the world.
