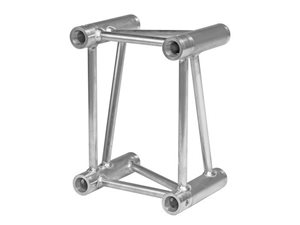

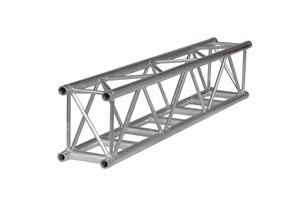

H40R Rectangular Truss Length
Catalog number: H40R-L100 - Item code: 111050492
Advantages of the H40R Truss
- Reduced volume in storage and transport
- Easy cross-span creation
- Available in all standard lengths
- Easy mounting of moving heads
- Central loading - reduced torsion effect
- Easy assembly due to pin direction
The
H40R truss is a rectangular standard H40 truss constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). Equipped with the
CCS6 conical coupling system the H40R has a clever program of specifications; compact and strong the H40R has three-sided webbing, the thicker braces on the bottom side allow easy mounting of moving heads and central loading, reducing the torsion effect resulting from one-sided loading in standard trusses. The spigot orientation follows that of the S series truss, allowing easy assembly while the truss is still on the floor. The H40R measures 387 mm high by 287 mm wide. The H40R is available in all standard lengths as well as a box-corner, a box corner attachment and the H40R MPT adapter; completing the H40R range to a convenient and flexible range. Download the
H40R loading table here.
 |
 |

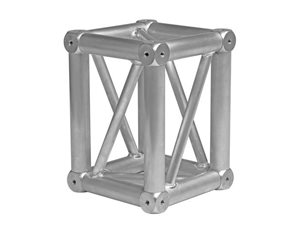

| Box Corner 40R |
Box Corner 40R Attachment |
Box corners are the ultimate flexible solution for rental
purposes, offering 2-way to 6-way corner connection
within one unit. More info can be found on the BOX-40R-0 product page. |
Pre-mounted connection unit for box corner. |
Product manager Eric Laanstra tells you all about the H40R in the above video. Apologies for the sound quality :)

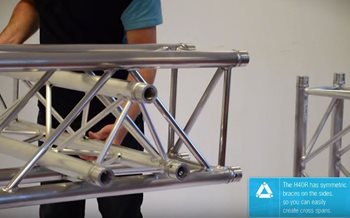

Left: Symmetric braces allow you to make cross spans with triangular trusses like the
H30D truss.

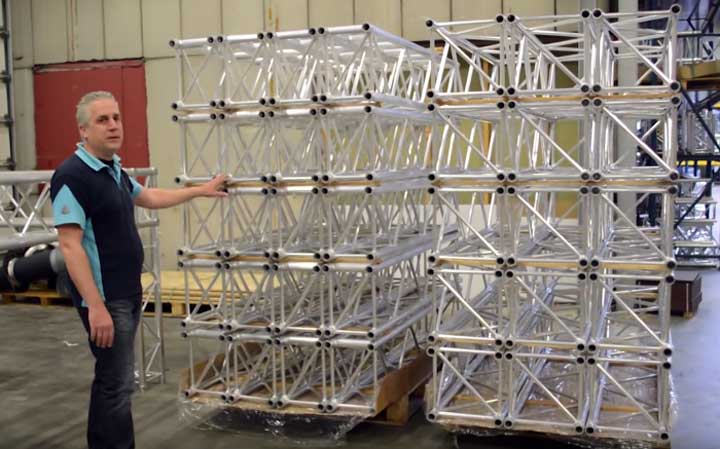

Right: You will save 25% storage or transport volume, compared to the
H40V truss.
| Standard available lengths and codes |
|
|
|
|
|
| Metres |
Feet |
Weight (kg) |
Weight (lbs) |
Code |
Item Number |
| 0,50 |
1,90 |
4,91 |
10.82 |
H40R-L050 |
211050055 |
| 1,00 |
3,28 |
7,89 |
17.39 |
H40R-L100 |
111050492 |
| 1,50 |
4,57 |
10,91 |
24.05 |
H40R-L150 |
111050502 |
| 2,00 |
6,56 |
14,24 |
31.39 |
H40R-L200 |
111050493 |
| 2,50 |
8,20 |
16,90 |
37.26 |
H40R-L250 |
111050503 |
| 3,00 |
9,84 |
20,22 |
44.58 |
H40R-L300 |
111050494 |
| 4,00 |
13,12 |
26,48 |
58.38 |
H40R-L400 |
111050504 |
Other Lengths available on request
| Technical Specifications - H40 Series |
|
| Alloy |
EN AW 6082 T6 |
| Main Tubes |
48 x 3 mm |
| Braces |
20 x 2 mm |
| Coupling System |
CCS6 |
| |
|

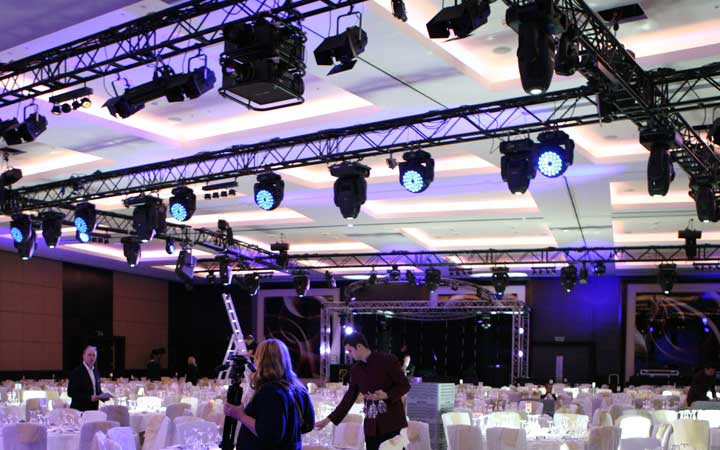

Photo: Impact Production Services (IPS), AV Network London Event
Summary
✔ You will save 25% storage or transport volume, compared to the H40V
✔ Thanks to the pin direction you can connect the H40R trusses on the ground without tilting it
✔ Symmetric braces allow you to make cross spans with triangular trusses like the H30D
✔ Thicker bottom braces allow easy mounting of moving heads and central loading of LED screens
