Lifting Capacity 2000kg

Catalog number: PAE-1000LV-1224
Item code: 216110234

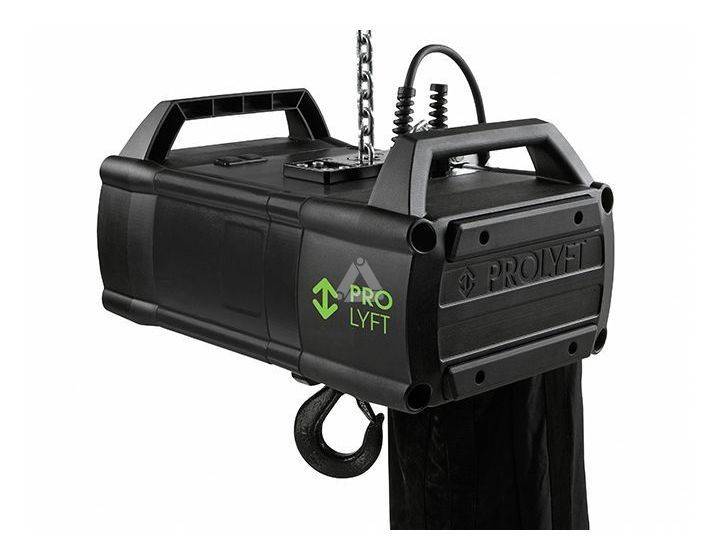

ProLyft Aetos hoists are designed to meet the increasingly exacting demands of the entertainment market. These fool proof hoists are designed to withstand rigorous transportation and rough handling and can be serviced just about everywhere. The standard integrated limit switches and jam free chain guide are a big plus.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Lifting Capacity 2000kg
Standard available configurations
Configuration Catalog Number Item Number
Direct Control Single Brake Double Reeved PAE-1000DC-1005 216110076
Direct Control Double Brake Double Reeved PAE-1000DC-1212 216610004
Low Voltage Double Reeved Double Brake PAE-1000LV-1224 216110234
Other configurations available on request
Technical specifications 2000 kg hoist
Load capacity 2000 kg
Lifting speed 2m/min
Operating voltage 230/400V - 50Hz
208/460V - 60Hz
Protection Class IP 55
Motorpower at 50Hz 0,66 kW

Current consumption at full load

1,46 Amp @ 400V
2,53 Amp @ 230V
FEM Class 1Am
FEM Duty factor 50%
Starts per hour 300
Noise Level 60 dBA
Load Wheel 5 pocket
Load Chain EN 818-7 7,1 x 20,5mm
Falls of chain 2
Weight of Chain 1,1 kg
Weight of Body 47 kg
Type of Control DC and LVC
Limit switches

single up/low limitswitches on DC
and LVC

Type of Power Connector CEE 16A-4p (red)
Type of LVC Connector CEE 10A-4p (yellow)

Low Voltage Control Voltage

24V
  • 90% reduction of locking chains by usage of specially designed disentangle plate
  • Limit switches on all hoists, preventing hoists from overload when running against the stop
  • Simple adding of a second brake
  • Covers equipped with safety-steel and captive bolts and easily rotatable for motor-up use
  • Clutch outside the load-brake line
  • Identification tag on every hoist
  • Worldwide Service Points
