Lifting Capacity 500kg

Catalog number: PAE-500LV-0001
Item code: 116110017

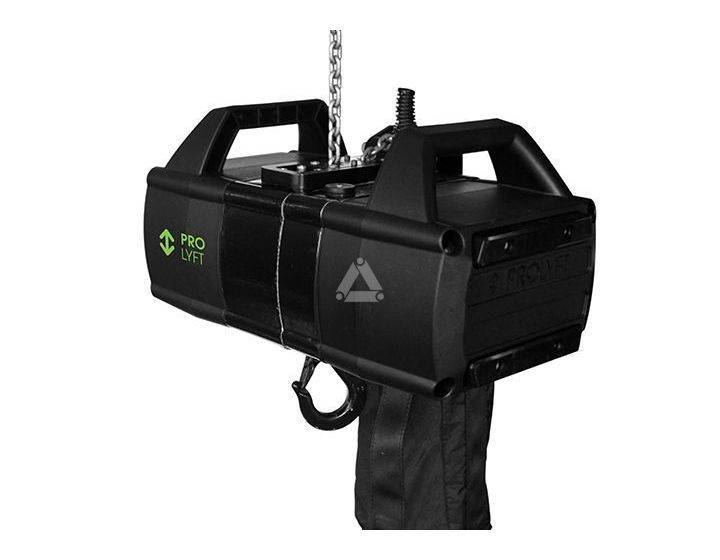

ProLyft Aetos hoists are designed to meet the increasingly exacting demands of the entertainment market. These fool proof hoists are designed to withstand rigorous transportation and rough handling and can be serviced just about everywhere. The standard integrated limit switches and jam free chain guide are a big plus.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Lifting Capacity 500kg
Standard available configurations
Configuration Catalog Number Item Number
Direct Control Single Brake PAE-500DC-0001 116110012
Direct Control Double Brake PAE-500DC-0201 216110226
Low Voltage Control Single Brake PAE-500LV-0001 116110017
Low Voltage Single Brake Harting Connector PAE-500LV-0001H 216110015
Low Voltage Control Double Brake PAE-500LV-0208 116110077
Other configurations available on request
Technical specifications 500 kg hoist
Load capacity 500 kg
Lifting speed 4m/min
Operating voltage 230/400V - 50Hz
208/460V - 60Hz
Protection Class IP 55
Motorpower at 50Hz 0,33 kW

Current consumption at full load

0,82 Amp @ 400V
1,42 Amp @ 230V
FEM Class 1Am
FEM Duty factor 50%
Starts per hour 300
Noise Level 60 dBA
Load Wheel 5 pocket
Load Chain EN 818-7 5,0 x 15,1mm
Falls of chain 1
Weight of Chain 0,53 kg
Weight of Body 28 kg
Type of Control DC and LVC
Limit switches

single up/low limitswitches on DC
and LVC

Type of Power Connector CEE 16A-4p (red)
Type of LVC Connector CEE 10A-4p (yellow)

Low Voltage Control Voltage

  • 90% reduction of locking chains by usage of specially designed disentangle plate
  • Limit switches on all hoists, preventing hoists from overload when running against the stop
  • Simple adding of a second brake
  • Covers equipped with safety-steel and captive bolts and easily rotatable for motor-up use
  • Clutch outside the load-brake line
  • Identification tag on every hoist
  • Worldwide Service Points
