This week's Product highlight is the Prolyte Middle beam Truss. The Middle beam comes in H40 series (H40V + H40R) and S52. The H40 MB Series truss is constructed of main chords (48 x 3 mm) and diagonal members (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 MB truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape. The H40 MB series is fully compatible with the regular H40V truss series and can be combined in one grid.

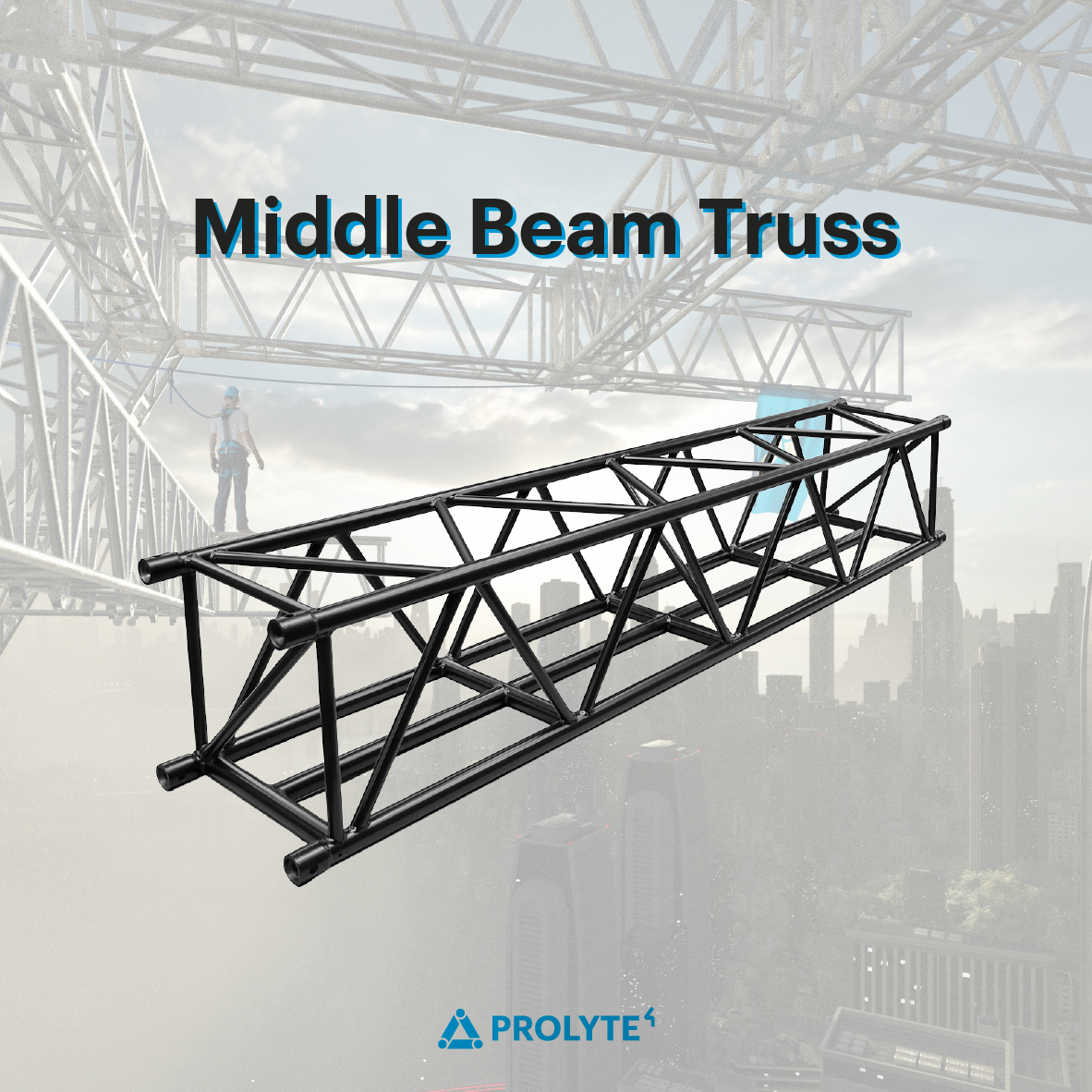

The S52 MB Series truss (in the picture) is constructed of main chords (50 x 4mm) and diagonal members (30 x 3 mm). Equipped with the CCS7 conical coupling system, the S52 MB truss is fast and easy to assemble. The S52 truss offers a strong truss with a very high loading capacity. The clever pin orientation guarantees fast and foolproof assembly. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape. The S52SV MB series is fully compatible with the regular S52SV truss series and can be combined in one grid.

Need more information? Visit www.prolyte.com or send us an email at sales@prolyte.com.

Prolyte brings something new every year. Founded in 1991 in Leek, Netherlands, Prolyte has quickly become famous around the world due to its in-house expertise and of being one step ahead of the competition with a new mentality and new energy: “Prolyte. Feel Fantastic.”
