Product Focus - B100RV Rigging Tower

Product Focus - B100RV Rigging Tower

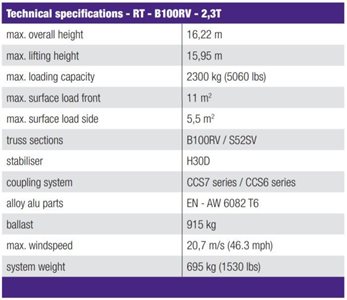

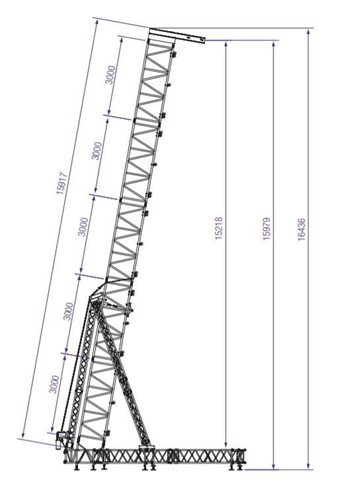

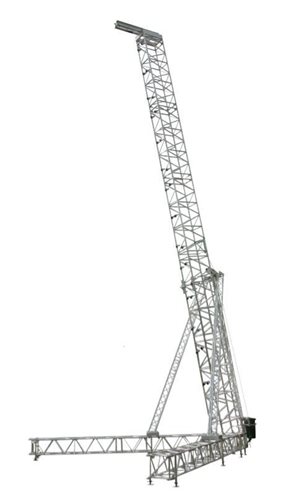

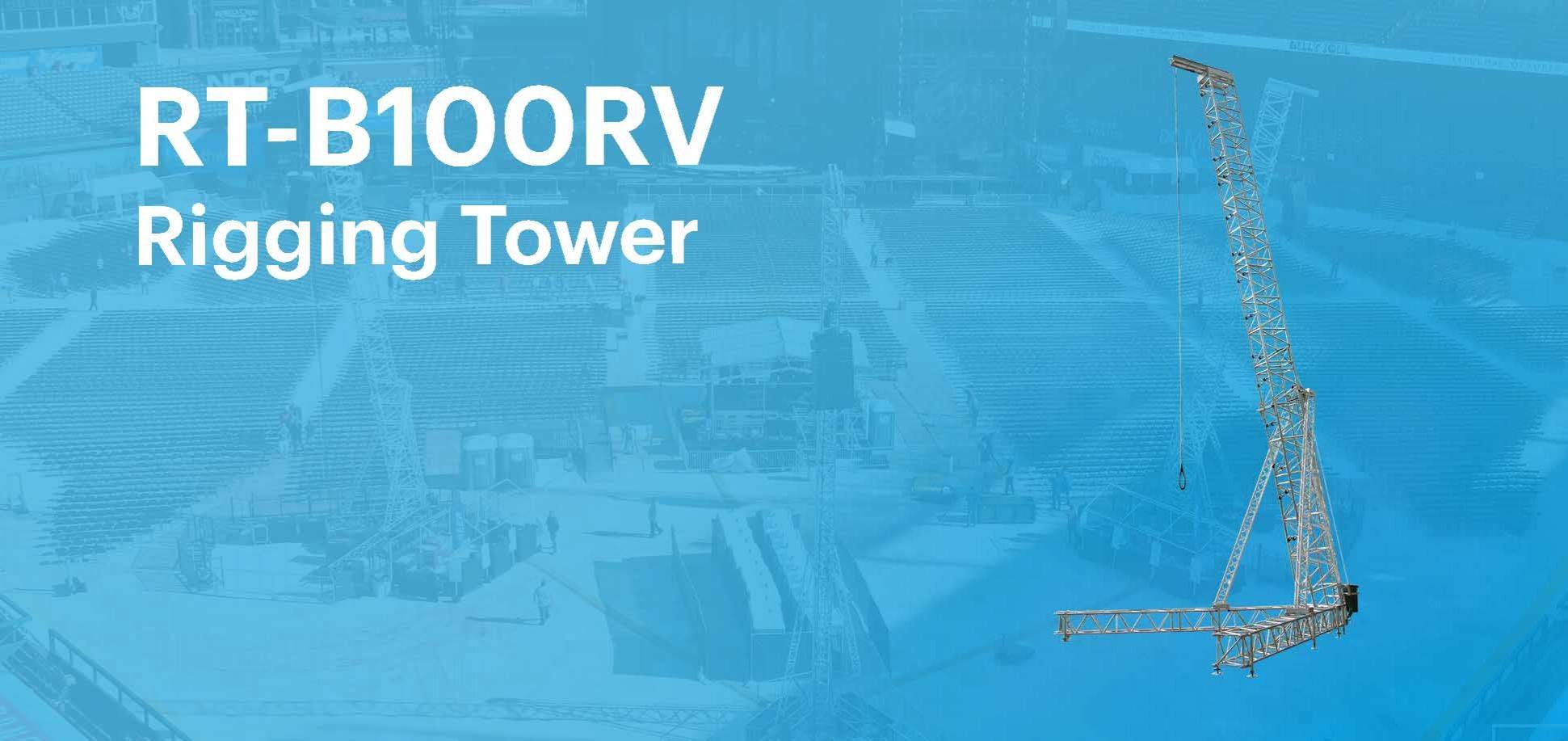

The heavy-duty RT-B100RV has a loading capacity of 2300 kg and a maximum lifting height of 15,95 m. The RT-B100RV is based on B100RV truss with stabilisers of H30D truss.

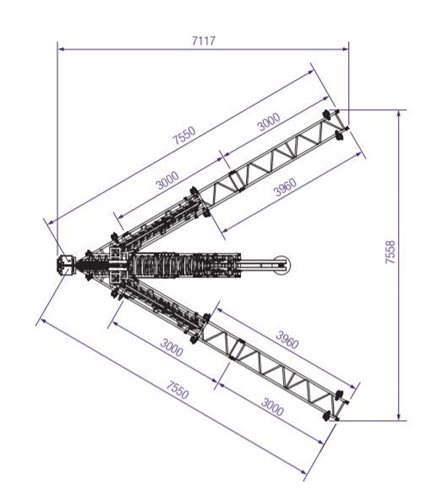

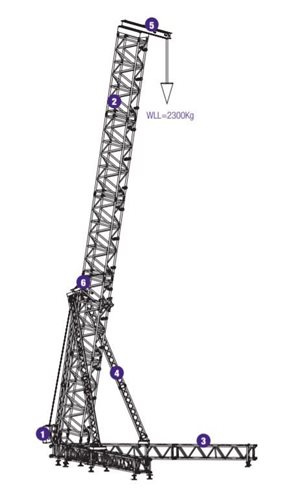

It has a self-weight of 695 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be built and erected using the hinges on the base. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted in position. The sturdy and stable RT-B100RV rigging tower is a safe and suitable solution for all sorts of settings, like outdoor events, major public gatherings, and large stadiums.




DOWNLOAD PRODUCT PAGE

A lastest case study from the USA

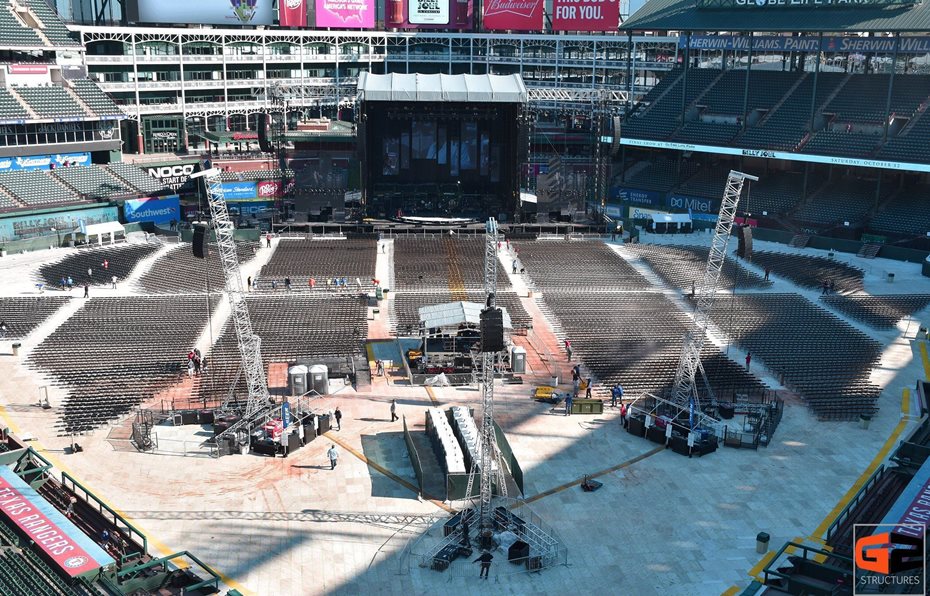

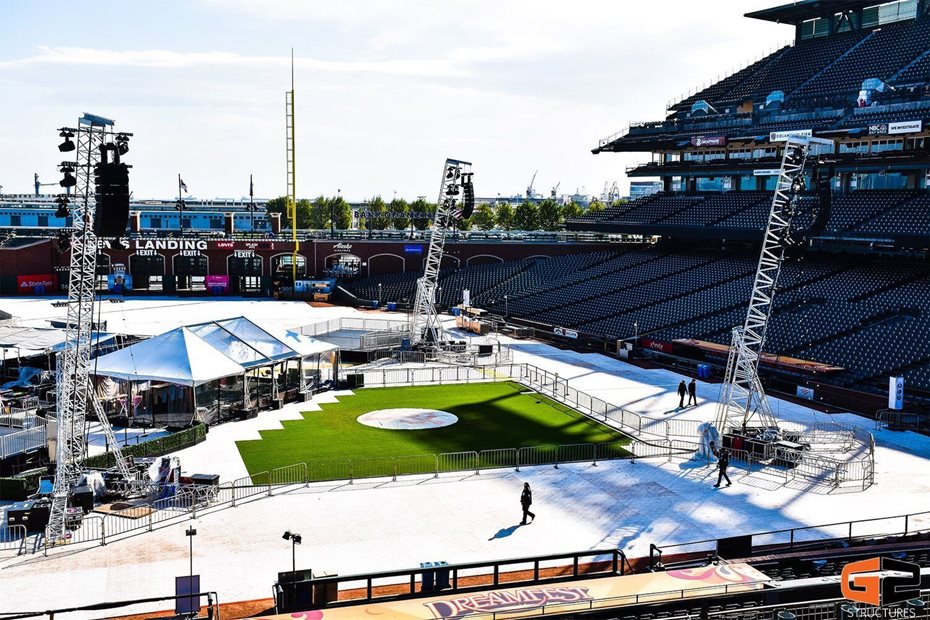

G2 Structures invest in Prolyte’s B100RV Rigging Towers in the US

Since 2008, G2 Structures, based in Mooresville, North Carolina, have provided staging and support for some of the most iconic entertainers on tour in stadiums throughout the US. With a customized design of the B100RV Rigging Tower capable of a height of 18 meters (59 ft).
