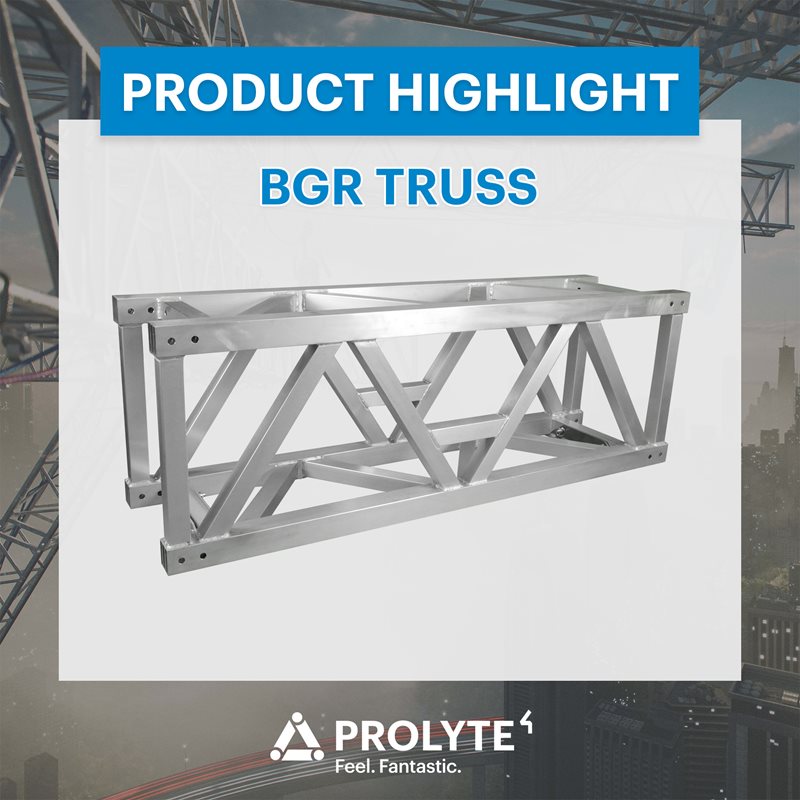

This month’s Product highlight is the well-known BGR70 truss. πŸ€©πŸ’™

The BGR70 truss is designed to create large spans that can hold heavy loads. Compared to conventional 100’er truss systems, the BGR70 truss is 40% stronger and saves up to 35% transport volume. Rectangular profiles create a truss that can be used for spans up to 45 meters, still allowing a centre point load of 750 kg. πŸ’ͺ

Using the unique pre-camber options, you can create an absolute straight truss. Depending on the applied load, a combination of spacers ranging from 0mm to 4mm can create a pre-camber effect that will result in zero deflection, despite the applied loading. This is a great feature when using motion or LED screens.

Due to its low volume and height, combined with a high load-bearing capacity, the BGR70 truss is extremely suitable as a mother grid, or to support a front façade for large sets, like on dance festivals. Due to its zero deflection, the BGR70 truss is ideal in applications with motion or LED screens. 🀩
