The MPT Roof is a tower-based structure with a pitched roof, which is a design that guarantees optimum strength. Primarily configured from standard trusses (
H30D,
H30V and
H40V) and
MPT-Tower, the MPT Roof is available in two sizes (12 x10m; 10 x 8m). However, the unrivalled flexibility of the system affords nearly 40 calculated structural varieties or setup possibilities for your MPT Roof. We are aware that every season and every event has different demands, and accordingly we have designed the MPT Roof to accommodate an extraordinary range of applications.
_1.jpg.aspx?width=400&height=400)

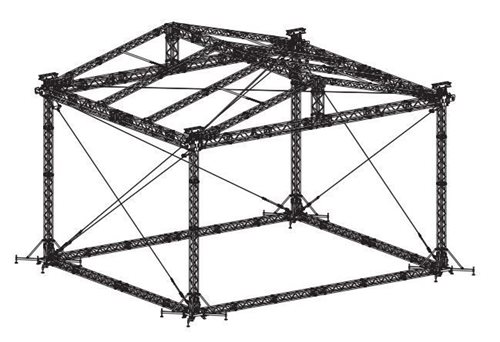

| Roof Structure - MPT Roof |
|
| Towers |
4 x MPT-tower, mast sections of H30V truss |
| Main grid |
H30D and H40V truss |
| Technical specifications - MPT Roof |
|
| |
12 x 10 m, 10 x 8 m |
| Dimensions |
(39’4” x 32’9”), (32’9” x 26’3”) |
| |
12 x 10 m approx. 3950kg |
| Loading capacity (UDL) |
10 x 8 m approx. 4500kg |
| |
12 x 10 m approx. 2400kg |
| Total weight |
10 x 8 m approx. 2100kg |
| |
12 x 10 m approx. 40m³ |
| Transportation volume |
10 x 8 m approx. 32m³ |
| Max. wind speed |
28,4 m/second, 63,3 mph |
Including
- Tension gear and steel wires
- Structural report
