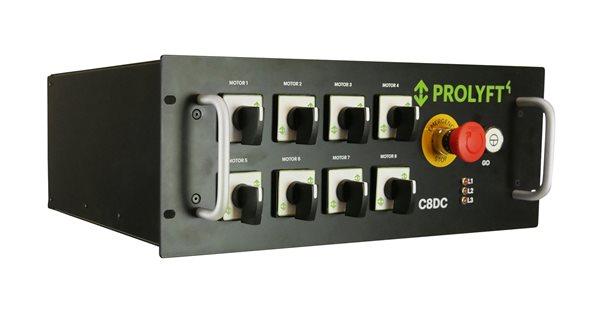

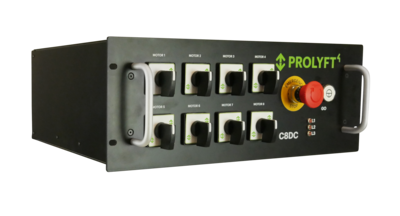

Prolyft controllers have been engineered with an understanding of the needs of rigging operator. The
front panel layout and the functionality of the buttons have been carefully designed to meet the demands of daily practice in lifting, where any mistake can create an overload situation.


Prolyft basic controllers are designed for applications that do not require advanced technology, offering a safe, simple, robust and effective control situation.

Available models:
• 8 and 12 channel version
• Direct Control and Low Voltage Control version.

• 400V and 230V.



Specifications:

• Robust rotating up/down selection switches per channel.
• Main circuit breaker per 4-channels.
• E-stop at SIL2 level.
• 32Amp/400V CEE form 5pin mains connector.

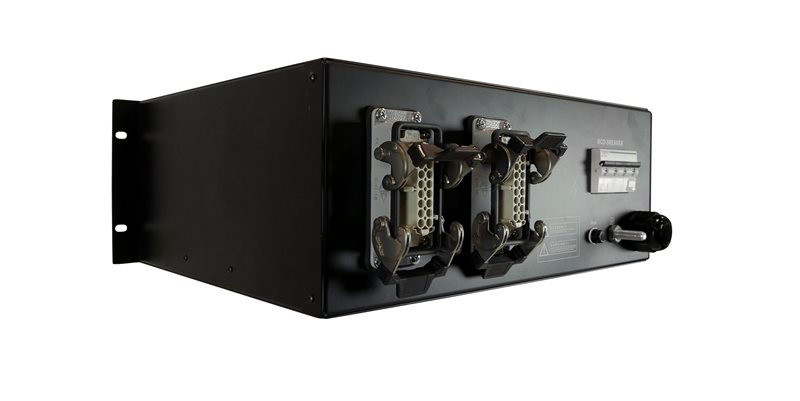

• Harting 16pin output connector(s).
• 19-inch rack mountable housing.



Catalogue Code:	Description:
PLB-C8DC-01	PROLYFT CONTROLLER 8 WAY BASIC 400-3 DC
PLB-C8DC-02	PROLYFT CONTROLLER 8 WAY BASIC 230-3 DC
PLB-C8LV-01	PROLYFT CONTROLLER 8 WAY BASIC 400-3 LV
PLB-C8LV-02	PROLYFT CONTROLLER 8 WAY BASIC 230-3 LV
PLB-C12DC-02	PROLYFT CONTROLLER 12 WAY BASIC 400-3 DC
PLB-C12DC-02	PROLYFT CONTROLLER 12 WAY BASIC 230-3 DC
PLB-C12LV-01	PROLYFT CONTROLLER 12 WAY BASIC 400-3 LV
PLB-C12LV-02	PROLYFT CONTROLLER 12 WAY BASIC 230-3 LV
