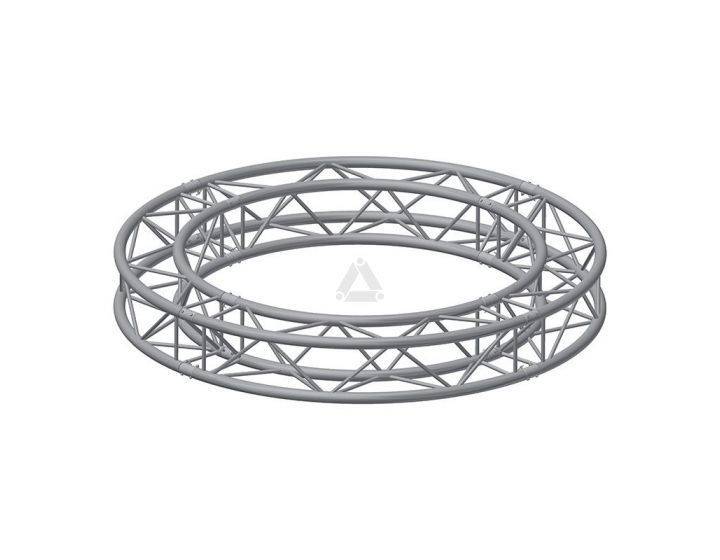

H40V Square Circle Truss

Catalog number: H40V-R500-8
Item code: 111060115

H40 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss circles are very measure steady and can be combined with any length or corner.


Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40V Square Circle Truss
Technical Specifications - H40 Series
Alloy EN AW 6082 T6
Main Tubes 48 x 3 mm
Braces 20 x 2 mm
Coupling System CCS6

H40V Circular truss - Allowable Loading



3 Suspension Points

4 Suspension Points

6 Suspension Points

8 Suspension Points

10 Suspension Points

Diameter

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

m

ft

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

4

13.1

115

77,7

318

701,8

430

289,6

1122

2476,1

739

497,6

1398

3085,7

1041

700,4

1535

3389,5

1336

899,1

1610

3554,2

6

19.7

58

39,3

232

512,1

256

172,1

946

2089,4

464

312,0

1264

2791,3

668

449,8

1440

3179,5

869

584,6

1541

3402,0

8

26.2

34

22,8

182

402,6

173

116,1

818

1805,0

328

220,7

1154

2546,9

483

325,3

1356

2993,2

636

427,8

1478

3261,8

10

32.8

21

14,0

146

321,8

125

84,2

719

1587,0

248

166,9

1060

2340,7

373

251,2

1281

2826,9

496

334,1

1419

3132,2

12

39.4

14

9,3

116

255,5

95

63,9

641

1414,7

196

131,8

981

2164,5

301

202,2

1213

2677,5

404

271,9

1365

3012,2

14

45.9

10

6,4

93

206,2

75

50,2

578

1275,0

159

107,2

911

2012,1

249

167,6

1152

2542,5

338

227,6

1314

2900,6


  • This loading figures is based on Uniformly Divided Suspension Points and a suspended load in each of the fields. In all other cases, this loading data is NOT valid.
  • If loads are unevenly divided, instability will occur. For more details and loading figures of other diameters, please visit our website.
  • The absence of diagonal braces at the top and/or bottom side of the truss means a dramatic reduction in the allowable loading; a structural report per situation is required for these models.
  • Loading figures are based on Eurocode; to comply with BS 7905-2 / ANSI E1.2-2006 / CWA 15902-2, the loading data must be multiplied by 0.85.
  • Truss orientation apex-up/down. Truss 100% horizontal.
  • Fool proof assembly
  • Light weight construction
  • Arc sections can be replaced
