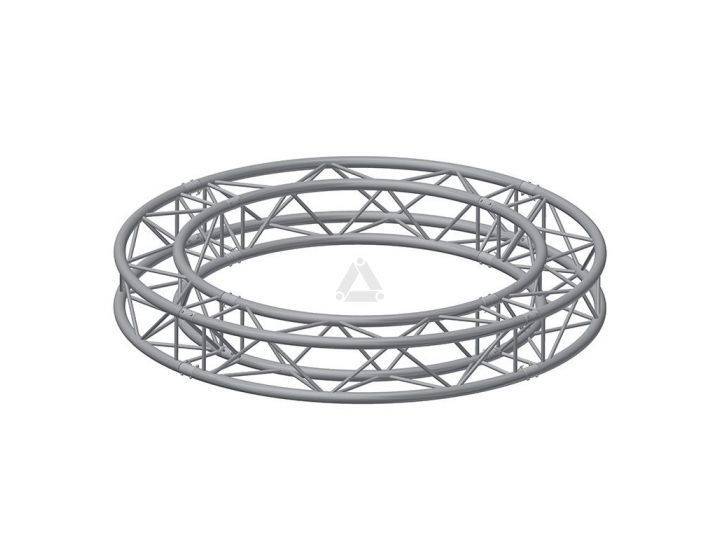

S36V Square Circle Truss

Catalog number: S36V-R200-4
Item code: 111140062



36 Series truss is constructed of main tubes (50 x 4 mm) and diagonals (25 x 3 mm). Equipped with the CCS7 conical coupling system, the S36 truss is fast and easy to assemble. The S36 truss offers a compact truss with a high loading capacity; the S36V has a 4-sided webbing, making it strong in a vertical and horizontal plane. This compact and flexible truss is a standard for rental companies all over the globe. The clever pin orientation guarantees fast and fool proof assembly. S36 truss is available in rectangular and square profiles and a range of corners and accessories.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S36V Square Circle Truss
Technical Specifications - S36 Series
Alloy EN AW 6082 T6
Main Tubes 50 x 4 mm
Braces 25 x 3 mm
Coupling System CCS7

S36V Circular truss - Allowable Loading



3 Suspension Points

4 Suspension Points

6 Suspension Points

8 Suspension Points

10 Suspension Points

Diameter

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

m

ft

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

4

13.1

485

326,7

1535

3388,7

766

515,6

1963

4333,2

1335

898,3

2495

5508,5

1891

1272,4

2769

6111,7

2435

1638,5

2919

6443,6

6

19.7

270

182,0

1211

2673,4

451

303,3

1636

3612,3

832

559,8

2236

4936,2

1209

813,8

2580

5694,5

1579

1062,4

2780

6137,6

8

26.2

173

116,4

998

2203,1

302

202,9

1401

3093,3

585

393,7

2025

4469,3

871

586,4

2414

5329,2

1152

775,4

2654

5858,5

10

32.8

117

78,6

816

1800,9

214

144,3

1123

2478,0

440

296,2

1721

3799,3

670

451,1

2268

5006,7

897

603,9

2538

5602,8

12

39.4

79

52,9

658

1452,5

146

98,4

919

2028,8

340

228,7

1423

3142,0

538

362,0

1919

4235,3

729

490,3

2410

5320,8

14

45.9

55

37,3

542

1196,1

105

70,8

771

1702,3

247

166,5

1209

2668,7

444

299,0

1636

3612,0

609

409,5

2059

4546,0


  • This loading figures is based on Uniformly Divided Suspension Points and a suspended load in each of the fields. In all other cases, this loading data is NOT valid.
  • If loads are unevenly divided, instability will occur. For more details and loading figures of other diameters, please visit our website.
  • The absence of diagonal braces at the top and/or bottom side of the truss means a dramatic reduction in the allowable loading; a structural report per situation is required for these models.
  • Loading figures are based on Eurocode; to comply with BS 7905-2 / ANSI E1.2-2006 / CWA 15902-2, the loading data must be multiplied by 0.85.
  • Truss orientation apex-up/down. Truss 100% horizontal.
  • Jig produced arc sections
  • Damaged parts can be replaced
  • Easy mounting due to pin direction
