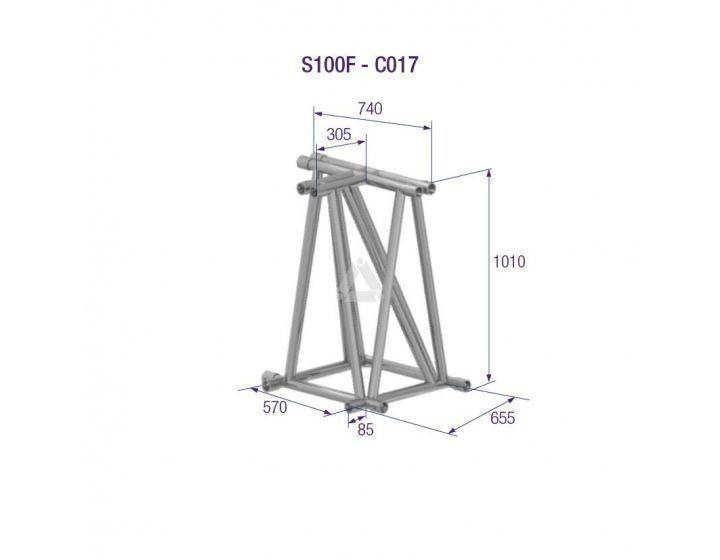

S100F-C017 3-Way T-Joint

Catalog number: S100F-C017
Item code: 111110027

S100F truss is constructed of main tubes (50 x 4 mm) and diagonals (48 x 3 mm). Equipped with the CCS7 conical coupling system, the S100F truss is fast and easy to assemble. Its foldable design can safe up to 75% truck or warehouse space, while the smart placing of the hinges prevents personal injuries. The S100F is suited for vertical loading only. Clever spigot pin orientation makes the assembly fool proof. S100F truss is available in several lengths and a range of corners and accessories.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S100F-C017 3-Way T-Joint
Technical Specifications - S100F Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 48 x 3 mm
Coupling System CCS7
  • Easy assembly due to pin direction
  • Optimised brace pattern for better force transfer
  • Very low transport volume
