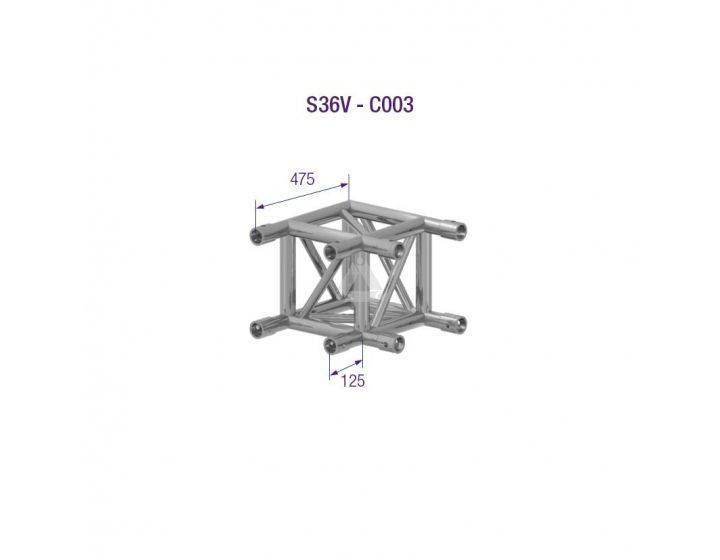

S36V-C003 2-Way Corner 90°

Catalog number: S36V-C003
Item code: 111100015

S36 Series truss is constructed of main tubes (50 x 4 mm) and diagonals (25 x 3 mm). Equipped with the CCS7 conical coupling system, the S36 truss is fast and easy to assemble. The S36 truss offers a compact truss with a high loading capacity; the S36V has a 4-sided webbing, making it strong in a vertical and horizontal plane. This compact and flexible truss is a standard for rental companies all over the globe. The clever pin orientation guarantees fast and fool proof assembly. S36 truss is available in rectangular and square profiles and a range of corners and accessories.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S36V-C003 2-Way Corner 90°
Technical Specifications - S36 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 25 x 3 mm
Coupling System CCS7
  • Easy assembly due to pin direction
  • Optimised brace pattern for better force transfer
