H40R Rectangular Truss Length

Catalog number: H40R-L100
Item code: 111050492

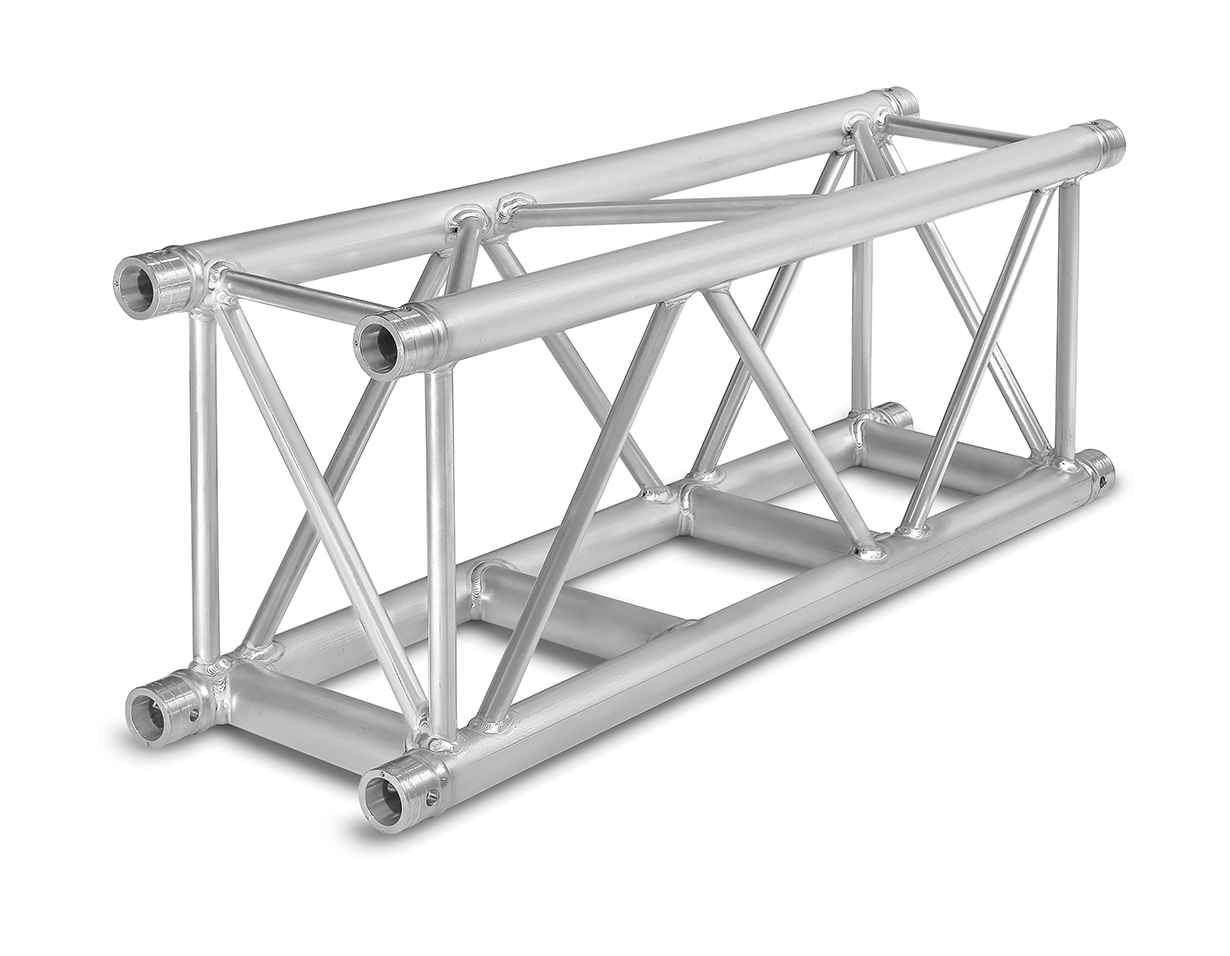

The H40R truss is a rectangular standard H40 truss constructed of main chords (48 x 3 mm) and diago­nal members (20 x 2 mm). Equipped with the CCS6 conical coupling system the H40R has a clever program of specifications; compact and strong the H40R has three-sided webbing, the thicker braces on the bottom side allow easy mounting of moving heads and central loading, reducing the torsion effect resulting from one-sided loading in standard trusses. The spigot orientation follows that of the S series truss, allowing easy assembly while the truss is still on the floor. The H40R measures 387 mm high by 287 mm wide. The H40R is available in all standard lengths as well as a box-corner, a box corner attachment and the H40R MPT adapter; completing the H40R range to a convenient and flexible range.

Download
H40R Rectangular Truss​ product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40R Rectangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,50 1,90 4,91 10.82 H40R-L050 211050055
1,00 3,28 7,89 17.39 H40R-L100 111050492
1,50 4,57 10,91 24.05 H40R-L150 111050502
2,00 6,56 14,24 31.39 H40R-L200 111050493
2,50 8,20 16,90 37.26 H40R-L250 111050503
3,00 9,84 20,22 44.58 H40R-L300 111050494
4,00 13,12 26,48 58.38 H40R-L400 111050504
Other Lengths available on request
Technical Specifications - H40 Series
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal members 20 x 2 mm
Coupling System CCS6


H40R - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

835,3

562,0

7

0,3

2198,8

4852,8

6

0,2

1252,9

2765,2

835,3

1843,4

626,5

1382,6

20.7

4

13,1

624,9

420,4

13

0,5

1712,1

3778,7

10

0,4

1214,9

2681,3

833,1

1838,7

624,9

1379,1

27.6

5

16,4

498,6

335,5

20

0,8

1435,5

3168,2

16

0,6

993,8

2193,4

815,0

1798,7

623,3

1375,5

34.5

6

19,7

414,4

278,9

29

1,1

1234,1

2723,6

23

0,9

851,5

1879,2

675,8

1491,5

529,5

1168,7

41.4

7

23,0

354,3

238,4

40

1,6

1080,5

2384,6

32

1,2

753,2

1662,4

584,8

1290,6

461,8

1019,1

48.3

8

26,2

277,3

186,6

52

2,0

959,3

2117,1

41

1,6

674,4

1488,3

514,4

1135,3

408,8

902,3

55.2

9

29,5

217,8

146,5

65

2,6

861,0

1900,3

52

2,1

609,5

1345,3

458,3

1011,6

366,1

808,1

62.1

10

32,8

175,2

117,9

81

3,2

779,7

1720,7

65

2,5

555,3

1225,4

412,5

910,4

330,9

730,4

69.0

11

36,1

143,7

96,7

98

3,8

711,0

1569,2

78

3,1

509,0

1123,4

374,3

826,0

301,3

665,1

75.9

12

39,4

119,7

80,5

116

4,6

652,2

1439,4

93

3,7

469,2

1035,4

341,8

754,4

276,1

609,3

82.8

13

42,6

101,1

68,0

137

5,4

601,2

1326,8

109

4,3

434,3

958,6

313,9

692,7

254,3

561,1

89.7

14

45,9

86,3

58,0

158

6,2

556,4

1228,0

127

5,0

403,6

890,8

289,6

639,1

235,1

519,0

96.6

15

49,2

74,3

50,0

182

7,2

516,7

1140,4

146

5,7

376,3

830,4

268,1

591,8

218,2

481,7

103.5

16

52,5

64,5

43,4

207

8,1

481,3

1062,2

166

6,5

351,7

776,2

249,1

549,7

203,2

448,4

110.4

17

55,8

56,4

38,0

234

9,2

449,3

991,7

187

7,4

329,5

727,3

232,0

512,1

189,6

418,5

117.3

18

59,0

49,7

33,4

262

10,3

420,4

927,8

210

8,3

309,3

682,7

216,6

478,1

177,4

391,4

124,2

19

62,3

43,9

29,5

292

11,5

394,0

869,5

233

9,2

290,9

641,9

202,6

447,2

166,2

366,8

131,1

20

65,6

39,0

26,2

323

12,7

369,7

816,0

259

10,2

273,9

604,4

189,8

418,9

156,0

344,2

138

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Reduced volume in storage and transport
  • Easy cross-span creation
  • Available in all standard lengths
  • Easy mounting of moving heads
  • Central loading - reduced torsion effect
  • Easy assembly due to pin direction
