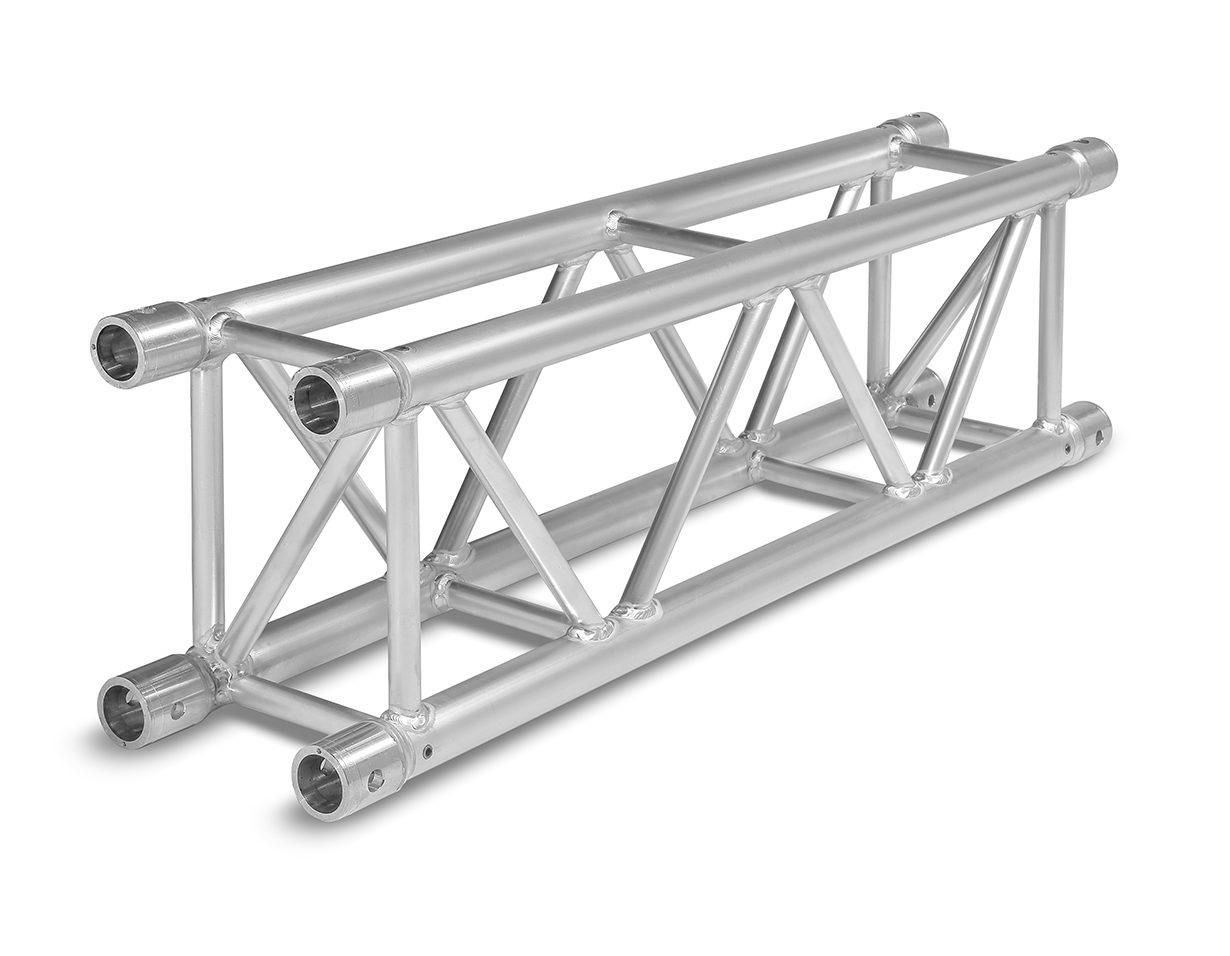

S36R Rectangular Truss Length

Catalog number: S36R-L100
Item code: 111110045

S36 Series truss is constructed of main chords(50 x 4 mm) and diagonal members (25 x 3 mm). Equipped with the CCS7 conical coupling system, the S36 truss is fast and easy to assemble. The S36 truss offers a compact truss with a high loading capacity; the S36V has a 4-sided webbing, making it strong in a vertical and horizontal plane. This compact and flexible truss is a standard for rental companies all over the globe. The clever pin orientation guarantees fast and fool proof assembly. S36 truss is available in rectangular and square profiles and a range of corners and accessories.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S36R Rectangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,50 1,64 8,30 18.30 S36R-L050 111110041
0,60 1,97 8,90 19.62 S36R-L060 111110042
0,80 2,62 10,40 22.93 S36R-L080 111110043
1,00 3,28 12,40 27.34 S36R-L100 111110045
1,20 3,94 13,90 30.64 S36R-L120 111110046
1,50 4,92 16,40 36.16 S36R-L150 111110047
1,60 5,25 14,37 31.68 S36R-L160 111110048
2,00 6,56 20,50 45.19 S36R-L200 111110049
2,40 7,87 23,30 51.37 S36R-L240 111110050
2,50 8,20 23,68 52.20 S36R-L250 111110051
3,00 9,84 28,30 62.39 S36R-L300 111110052
3,20 10,50 30,10 66.36 S36R-L320 111110053
4,00 13,12 36,60 80.69 S36R-L400 111110055
Other Lengths available on request
Technical Specifications - S36 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 25 x 3 mm
Coupling System CCS7


S36R - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed Load



Centre Point Load



Single Load Third Points Load per Point

Single Load Fourth Points Load per Point

Single Load Fifth Points Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

1533,6

1031,9

8

0,3

2270,5

5011,1

7

0,3

1471,3

3247,1

1167,6

2576,9

979,3

2161,4

31,5

4

13,1

1147,8

772,3

15

0,6

1874,3

4136,6

12

0,5

1217,2

2686,4

996,5

2199,2

822,7

1815,8

42,0

5

16,4

863,7

581,1

23

0,9

1593,3

3516,5

18

0,7

1055,9

2330,3

881,6

1945,7

693,7

1531,0

52,5

6

19,7

596,9

401,6

33

1,3

1383,3

3052,9

26

1,0

930,9

2054,6

780,4

1722,4

598,6

1321,0

63,0

7

23,0

436,0

293,4

45

1,8

1219,9

2692,3

36

1,4

831,2

1834,4

678,0

1496,3

525,4

1159,6

73,5

8

26,2

331,6

223,1

58

2,3

1088,9

2403,2

47

1,8

749,5

1654,1

598,0

1319,8

467,3

1031,2

84,0

9

29,5

260,0

175,0

74

2,9

981,3

2165,7

59

2,3

681,2

1503,5

533,7

1177,9

419,8

926,5

94,5

10

32,8

208,8

140,5

91

3,6

891,1

1966,7

73

2,9

623,2

1375,5

480,8

1061,1

380,3

839,3

105,0

11

36,1

170,9

115,0

111

4,4

814,3

1797,1

88

3,5

573,3

1265,2

436,4

963,1

346,8

765,4

115,5

12

39,4

142,1

95,6

132

5,2

747,9

1650,6

105

4,1

529,6

1168,9

398,5

879,4

318,0

701,8

126,0

13

42,6

119,7

80,5

154

6,1

689,8

1522,5

124

4,9

491,2

1084,0

365,7

807,0

292,9

646,4

136,5

14

45,9

101,9

68,6

179

7,0

638,5

1409,2

143

5,6

456,9

1008,4

336,9

743,6

270,8

597,7

147,0

15

49,2

87,6

58,9

206

8,1

592,7

1308,1

164

6,5

426,2

940,6

311,5

687,6

251,1

554,3

157,5

16

52,5

75,8

51,0

234

9,2

551,5

1217,2

187

7,4

398,4

879,2

288,9

637,5

233,5

515,3

168,0

17

55,8

66,1

44,5

264

10,4

514,2

1134,8

211

8,3

373,0

823,2

268,4

592,5

217,6

480,1

178,5

18

59,0

57,9

39,0

296

11,7

480,1

1059,6

237

9,3

349,8

772,0

249,9

551,6

203,0

448,1

189,0

19

62,3

51,0

34,3

330

13,0

448,9

990,7

264

10,4

328,4

724,7

233,0

514,3

189,8

418,8

199,5

20

65,6

45,1

30,4

365

14,4

420,0

927,0

292

11,5

308,6

681,0

217,5

480,1

177,5

391,8

210,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Clever pin orientation
  • Fast and easy to assemble
  • Compact truss with high loading capacity
  • Vertical and horizontal strength
  • Available all over the globe
