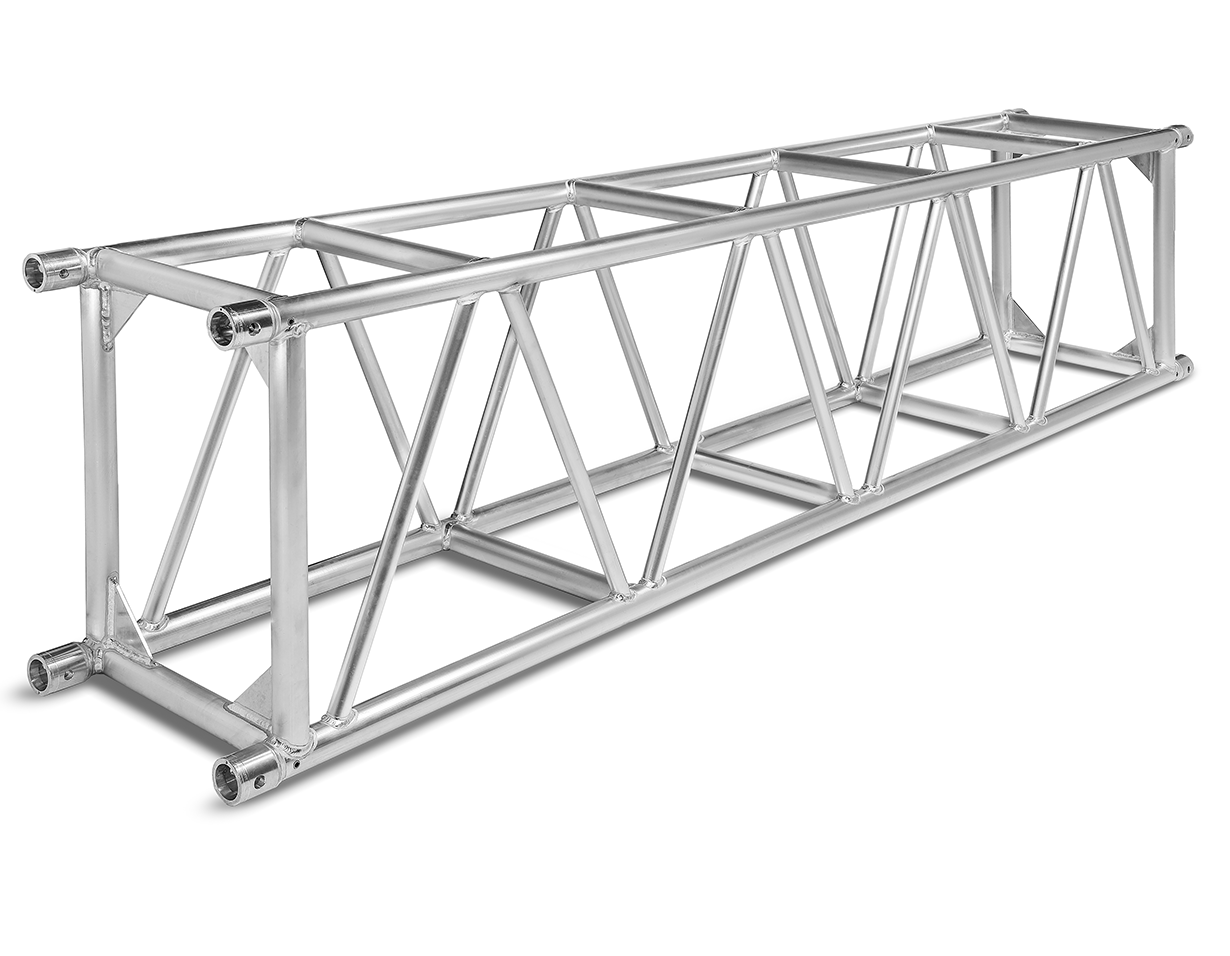

S66R Rectangular Truss Length

Catalog number: S66R-L100
Item code: 111110149

S66 Series truss is constructed of main chords (50 x 4 mm) and diagonal members (30 x 3mm). Equipped with the CCS7 conical coupling system, the S66 truss is fast and easy to assemble. Designed as a pre-rig truss for par cans the S66 truss offers a strong truss with a very high loading capacity. The clever pin orientation guarantees fast and fool proof assembly. S66 truss is available in rectangular and square profiles and a range of corners and accessories.

Download
S66R Rectangular Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S66R Rectangular Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
1,00 3,28 16,35 36.05 S66R-L100 111110149
1,50 4,92 21,98 48.46 S66R-L150 111110153
2,00 6,56 27,65 60.96 S66R-L200 111110156
2,50 8,20 31,07 68.50 S66R-L250 111110159
3,00 9,84 36,65 80.80 S66R-L300 111110162
3,50 11,48 42,37 93.41 S66R-L350 111110167
4,00 13,12 47,79 105.36 S66R-L400 111110168
Other Lengths available on request
Technical Specifications - S66 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 30 x 3 mm
Coupling System CCS7


S66R and S66V - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

6

19,7

1012,0

681,0

16

0,6

2286,7

5046,7

13

0,5

1441,1

3180,5

1145,5

2528,1

952,8

2102,9

102,0

7

23,0

865,3

582,2

22

0,9

2065,1

4557,7

18

0,7

1321,4

2916,4

1064,9

2350,3

893,9

1972,9

119,0

8

26,2

680,5

457,9

29

1,1

1880,3

4149,7

23

0,9

1218,8

2689,8

993,7

2193,2

824,3

1819,2

136,0

9

29,5

534,5

359,6

37

1,4

1723,4

3803,6

29

1,2

1129,6

2493,0

930,3

2053,2

752,0

1659,6

153,0

10

32,8

430,0

289,3

45

1,8

1588,4

3505,6

36

1,4

1051,3

2320,2

873,3

1927,4

690,2

1523,3

170,0

11

36,1

352,7

237,3

55

2,2

1470,8

3245,9

44

1,7

981,9

2167,0

821,7

1813,6

636,9

1405,5

187,0

12

39,4

294,0

197,8

65

2,6

1367,1

3017,3

52

2,0

919,8

2030,1

770,2

1699,7

590,2

1302,5

204,0

13

42,6

248,2

167,0

76

3,0

1275,0

2813,9

61

2,4

863,9

1906,7

712,2

1571,8

548,9

1211,4

221,0

14

45,9

211,9

142,6

89

3,5

1192,4

2631,7

71

2,8

813,2

1794,8

661,0

1458,9

512,1

1130,3

238,0

15

49,2

182,6

122,9

102

4,0

1117,8

2467,1

81

3,2

767,0

1692,7

615,5

1358,4

479,1

1057,3

255,0

16

52,5

158,7

106,8

116

4,6

1050,0

2317,4

93

3,6

724,5

1599,0

574,6

1268,2

449,2

991,3

272,0

17

55,8

138,8

93,4

131

5,1

988,0

2180,6

104

4,1

685,4

1512,6

537,7

1186,7

421,9

931,1

289,0

18

59,0

122,1

82,2

146

5,8

931,0

2054,7

117

4,6

649,1

1432,5

504,1

1112,5

396,9

876,0

306,0

19

62,3

108,1

72,7

163

6,4

878,3

1938,3

131

5,1

615,3

1357,9

473,3

1044,6

374,0

825,3

323,0

20

65,6

96,0

64,6

181

7,1

829,3

1830,3

145

5,7

583,7

1288,2

445,0

982,1

352,7

778,4

340,0

21

68,9

85,7

57,7

199

7,8

783,7

1729,6

159

6,3

554,1

1222,9

418,8

924,4

332,9

734,7

357,0

22

72,2

76,7

51,6

219

8,6

741,0

1635,3

175

6,9

526,2

1161,3

394,5

870,7

314,5

694,0

374,0

23

75,4

68,9

46,3

239

9,4

700,8

1546,7

191

7,5

499,9

1103,2

371,9

820,7

297,2

655,8

391,0

24

78,7

62,0

41,7

260

10,2

663,0

1463,3

208

8,2

474,9

1048,1

350,6

773,8

280,9

620,0

408,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Clever pin orientation
  • Fast and easy to assemble
  • Very high loading capacity
  • Pre-rig truss
