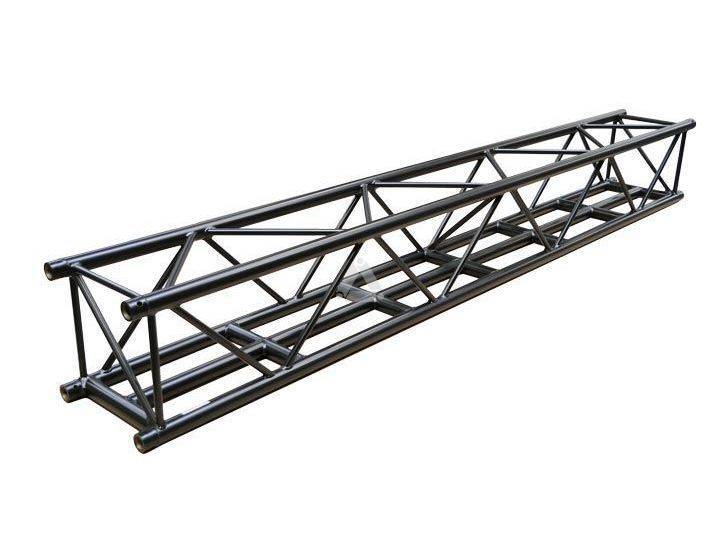

H40V MB Square Truss Length

Catalog number: H40V-L100-MB
Item code:

H40 MB Series truss is constructed of main chords (48 x 3 mm) and diagonal members (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 MB truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. The extra middle beam in the bottom surface will guarantee safe and easy suspension of your LED wall. Keeping the total load in the middle of your truss section, thereby avoiding unbalanced loading or using the truss in a diamond shape. The H40 MB series is fully compatible with the regular H40V truss series and can be combined in one grid.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40V MB Square Truss Length
Technical Specifications - H40V-MB
Alloy EN AW 6082 T6
Main Chords 48 x 3 mm
Diagonal Members 20 x 2 mm
Coupling System CCS6
  • Fast and easy assembly
  • Light weight system
  • Versatile application
  • Cross bracing
  • Can be combined with standard H40V
  • Load in the centralised in the truss section
