S52SV Square Truss Length

Catalog number: S52SV-L100
Item code: 111110104

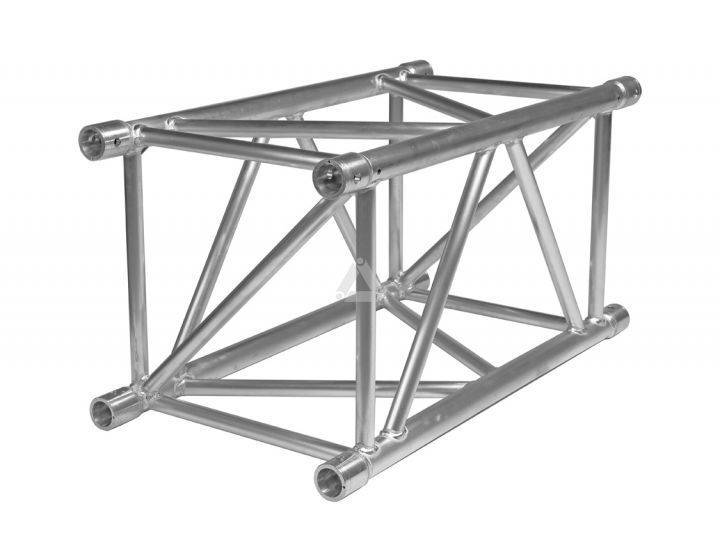

S52 Series truss is constructed of main chords (50 x 4 mm) and diagonal members (25 x 3 mm – 30 x 3mm). Equipped with the CCS7 conical coupling system, the S52 truss is fast and easy to assemble. The S52 truss offers a strong truss with a very high loading capacity; the S52SV has a 4-sided webbing, making it strong in a vertical and horizontal plane. This study truss is a standard for rental companies all over the globe. The clever pin orientation guarantees fast and fool proof assembly. S52 truss is available in rectangular and square profiles and a range of corners and accessories.

Download
S52V Square Truss product data sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
S52SV Square Truss Length
Standard available lengths and codes
Metres Feet Weight (kg) Weight (lbs) Code Item Number
0,60 1,97 12,80 28.22 S52SV-L060 111110100
0,80 2,62 13,90 30.64 S52SV-L080 111110103
1,00 3,28 15,50 34.17 S52SV-L100 111110104
1,20 3,94 19,20 42.33 S52SV-L120 111110106
1,50 4,57 21,40 47.18 S52SV-L150 111110108
1,60 5,25 22,40 49.38 S52SV-L160 111110109
2,00 6,56 27,10 59.74 S52SV-L200 111110112
2,40 7,87 30,90 68.12 S52SV-L240 111110113
2,50 8,20 31,20 68.78 S52SV-L250 111110114
3,00 9,84 37,50 82.67 S52SV-L300 111110115
3,20 10,50 37,75 83.22 S52SV-L320 111110116
4,00 13,12 47,10 103.84 S52SV-L400 111110117
Other Lengths available on request
Technical Specifications - S52 Series
Alloy EN AW 6082 T6
Main Chords 50 x 4 mm
Diagonal Members 30 x 3 mm
Coupling System CCS7


S52SV - Allowable Loading



MAXIMUM ALLOWABLE POINT LOADS




Uniformly Distributed

Load



Centre Point Load



Single Load Third Points

Load per Point

Single Load Fourth Points

Load per Point

Single Load Fifth Points

Load per Point



SPAN

UDL

DEFLECTION

CPL

DEFLECTION

TPL

QPL

FPL

SPAN

m

ft

kg/m

lbs/ft

mm

inch

kgs

lbs

mm

inch

kgs

lbs

kgs

lbs

kgs

lbs

total weight

3

9,8

1880,2

1265,1

5

0,2

2946,1

6501,9

4

0,2

1863,5

4112,8

1410,7

3113,4

1144,2

2525,2

45,0

4

13,1

1406,8

946,6

9

0,4

2505,6

5529,8

7

0,3

1584,5

3496,9

1239,4

2735,3

1028,6

2270,1

60,0

5

16,4

1122,7

755,5

15

0,6

2179,5

4810,2

12

0,5

1384,5

3055,5

1109,0

2447,6

927,3

2046,5

75,0

6

19,7

933,4

628,0

21

0,8

1925,9

4250,5

17

0,7

1245,2

2748,1

1013,9

2237,7

846,0

1867,2

90,0

7

23,0

686,7

462,1

29

1,1

1722,6

3801,8

23

0,9

1129,9

2493,8

932,5

2058,1

752,1

1660,0

105,0

8

26,2

522,6

351,7

37

1,5

1555,6

3433,2

30

1,2

1032,8

2279,4

862,0

1902,4

675,9

1491,6

120,0

9

29,5

410,1

275,9

47

1,9

1415,7

3124,5

38

1,5

949,7

2096,1

800,1

1765,8

612,6

1351,9

135,0

10

32,8

329,6

221,8

59

2,3

1296,6

2861,6

47

1,8

877,7

1937,1

725,7

1601,6

559,1

1233,9

150,0

11

36,1

270,1

181,7

71

2,8

1193,7

2634,6

57

2,2

814,5

1797,6

661,8

1460,7

513,2

1132,6

165,0

12

39,4

224,8

151,2

84

3,3

1103,8

2436,1

67

2,7

758,6

1674,1

607,0

1339,7

473,3

1044,6

180,0

13

42,6

189,5

127,5

99

3,9

1024,4

2260,8

79

3,1

708,6

1563,8

559,3

1234,4

438,3

967,3

195,0

14

45,9

161,6

108,7

115

4,5

953,6

2104,5

92

3,6

663,6

1464,5

517,3

1141,8

407,2

898,7

210,0

15

49,2

139,0

93,5

132

5,2

889,9

1964,0

105

4,1

622,7

1374,4

480,1

1059,5

379,4

837,3

225,0

16

52,5

120,5

81,1

150

5,9

832,3

1836,8

120

4,7

585,5

1292,1

446,7

985,9

354,3

781,9

240,0

17

55,8

105,2

70,8

169

6,7

779,7

1720,8

135

5,3

551,3

1216,7

416,6

919,4

331,5

731,6

255,0

18

59,0

92,4

62,2

190

7,5

731,5

1614,5

152

6,0

519,7

1147,0

389,2

858,9

310,7

685,6

270,0

19

62,3

81,5

54,9

211

8,3

687,1

1516,5

169

6,7

490,4

1082,4

364,1

803,7

291,5

643,4

285,0

20

65,6

72,3

48,6

234

9,2

646,0

1425,7

187

7,4

463,2

1022,2

341,1

752,9

273,8

604,4

300,0

1 inch = 25,4 mm | 1m = 3.28 ft | 1 lbs = 0,453 kg


  • Tüv certification only valid for loading table above.
  • Loading figures are only valid for static loads.
  • Loading figures are only valid for single spans with supports at both ends.
  • All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte B.V. for assistance.
  • Loading figures are calculated according to and in full compliance with European standards (Eurocode).
  • The self-weight of the trusses is already taken into account.
  • Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
  • The interaction between bending moment and shear force at the connection point is already taken into account.
  • Truss spans can be assembled from different truss lengths.
  • Read the manual before assembling, using and loading the truss.
  • Clever pin orientation
  • Fast and easy to assemble
  • Very high loading capacity
  • Available worldwide
