Rigging Tower H30V

Catalog number: -
Item code: 112140012

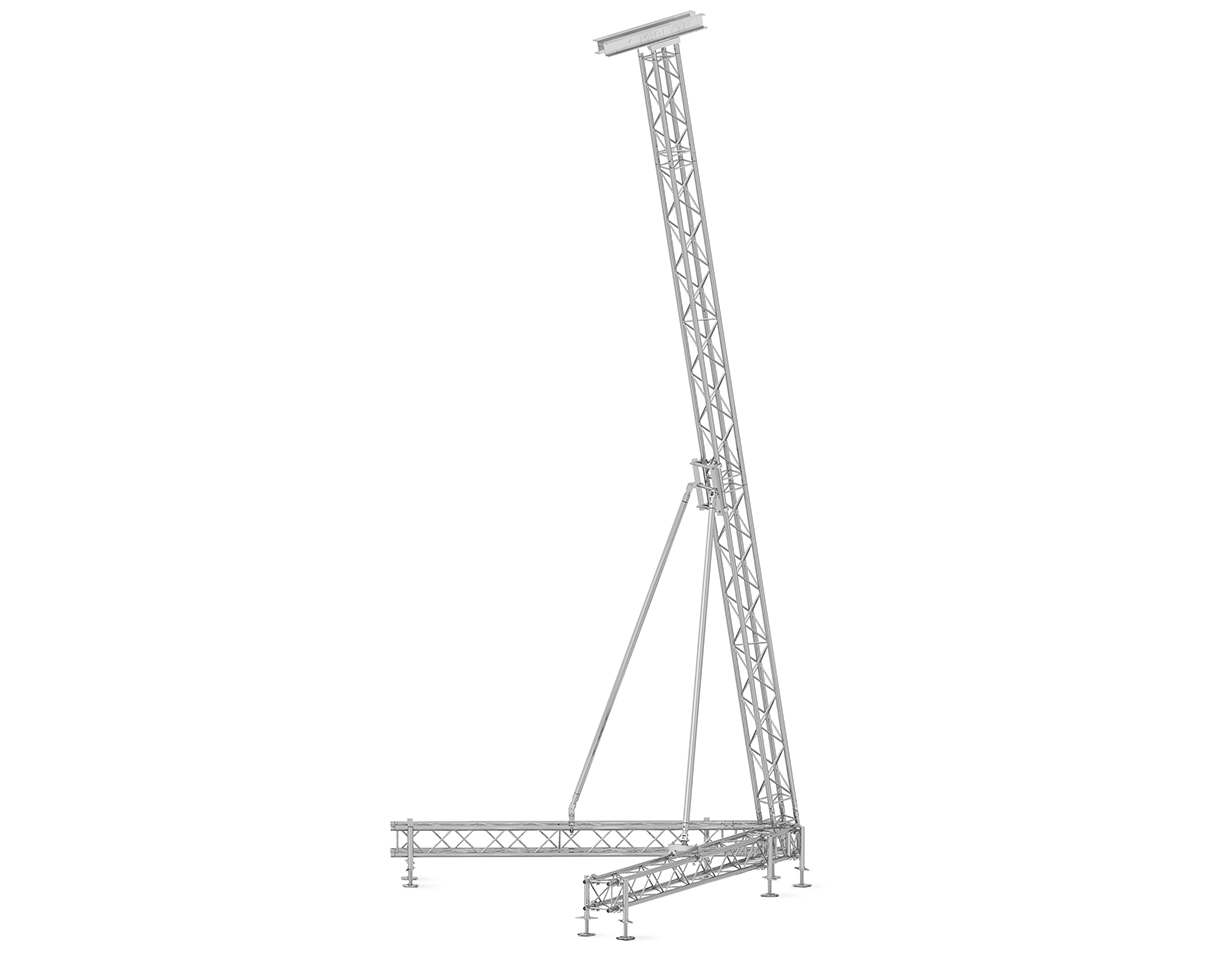

The light-duty RT H30V has a loading capacity of 800 kg and a maximum lifting height of 7,60 m. The RT H30V is based on H30V truss with the stabilisers of 60 mm tube. It has a self-weight of 260 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be build and erected using the hinges on the base corner. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted in position. Its relatively small dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.

Download
Prolyte RT-H30V product sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Rigging Tower H30V
Technical specifications - RT - H30V - 0,8T
max. overall height 7,92 m (other heights optional)
max. lifting height 7,60 m
max. loading capacity 800 kg (1760 lbs)
max. surface load front 2,5 m2
max. surface load side 1,25 m2
truss sections H30V
stabiliser 60 mm
coupling system CCS6 series
alloy alu parts EN - AW 6082 T6
ballast 100 kg
max. windspeed 20,7 m/s (46.3 mph)
system weight 260 kg
Its relatively small dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.
