Rigging Tower S36V

Catalog number: -
Item code: 112140013

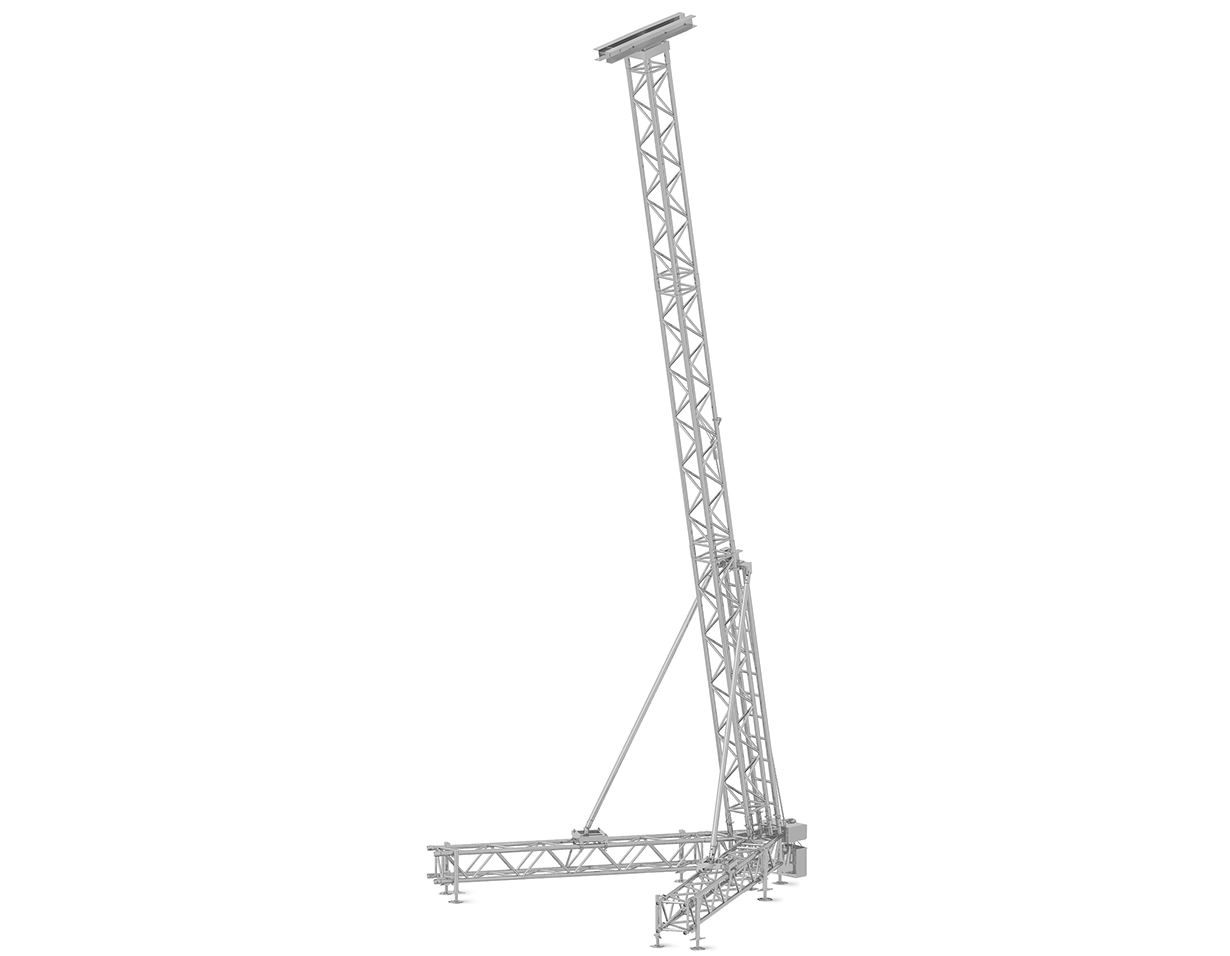

The medium-duty RT S36V has a loading capacity of 1000 kg and a maximum lifting height of 9,25 m. The RT S36V is based on S36V truss with stabilisers of 60 mm tube. It has a self-weight of 415 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be built and erected using the hinges on the base corner. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted in position. The relatively compact dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.

Download
Prolyte RT-S36V product sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Rigging Tower S36V
Technical specifications - RT - S36V - 1T
max. overall height 9,46 m (other heights optional)
max. lifting height 9,25 m
max. loading capacity 1000 kg (2200 lbs)
max. surface load front 5 m2
max. surface load side 2,5 m2
truss sections S36V
stabiliser 60 mm
coupling system CCS7 series
alloy alu parts EN - AW 6082 T6
ballast 480 kg
max. windspeed 20,7 m/s (46.3 mph)
system weight 415 kg
The relatively compact dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, halls, exhibition areas and theme parks.
