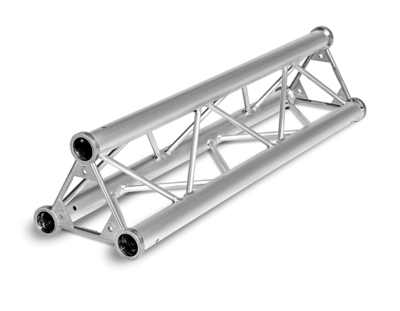

AstraLite Triangular Truss Length

Catalog number: AO3-L100
Item code: 112040014

AstraLite truss is constructed of main tubes (50,8 x 1,6 mm) and diagonals (12,7 x 1,6 mm). With its medium-sized construction and relative strength this truss is specially aimed at applications that require permanent installation. Using a bolted internal tube connection the AstraLite is the preferred choice for any application that requires an economic solution. AstraLite truss is available in ladder, triangular and square profiles and a range of corners and accessories.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out contacting our Sales Team.

Technical Specification Advantages Downloads

Standard available lengths and codes
Metres	Feet	Weight (kg)	Weight (lbs)	Code	Item Number
0,20	0,66	0,54	1.19	AO3-L020	112040010
0,40	1,31	1,05	2.31	AO3-L040	112040011
0,60	1,97	1,56	3.44	AO3-L060	112040012
0,80	2,62	2,06	4.54	AO3-L080	112040013
1,00	3,28	2,57	5.67	AO3-L100	112040014
2,00	6,56	5,10	11.24	AO3-L200	112040015
3,00	9,84	7,64	16.84	AO3-L300	112040016
4,00	13,12	10,17	22.42	AO3-L400	112040017
5,00	16,40	12,71	28.02	AO3-L500	112040018
Other Lengths available on request

Technical Specifications - AO3
Alloy	EN AW 6082 T6
Main Tubes	50,8 x 1,6 mm
Braces	12,7 x 1,6 mm
Coupling System	Bolted Internal tube connection

AO3 - Allowable Loading
						MAXIMUM ALLOWABLE POINT LOADS
		Uniformly Distributed Load				Centre Point Load				Single Load Third Points Load per Point		Single Load Fourth Points Load per Point		Single Load Fifth Points Load per Point
SPAN		UDL		DEFLECTION		CPL		DEFLECTION		TPL		QPL		FPL		SPAN
m	ft	kg/m	lbs/ft	mm	inch	kgs	lbs	mm	inch	kgs	lbs	kgs	lbs	kgs	lbs	total weight
2	6,6	342,6	230,5	2	0,1	342,6	756,1	3	0,1	256,9	567,0	171,3	378,0	142,7	315,0	5,00
3	9,8	150,8	101,4	5	0,2	226,1	499,1	6	0,2	169,6	374,3	113,1	249,5	94,2	207,9	7,50
4	13,1	83,6	56,3	9	0,4	167,2	369,1	11	0,4	125,4	276,8	83,6	184,5	69,7	153,8	10,00
5	16,4	52,5	35,4	14	0,6	131,4	289,9	17	0,7	98,5	217,4	65,7	145,0	54,7	120,8	12,50
6	19,7	35,7	24,0	20	0,8	107,0	236,1	25	1,0	80,2	177,1	53,5	118,1	44,6	98,4	15,00
7	23,0	25,5	17,1	28	1,1	89,2	196,9	33	1,3	66,9	147,6	44,6	98,4	37,2	82,0	17,50
8	26,2	18,9	12,7	36	1,4	75,5	166,7	44	1,7	56,6	125,0	37,8	83,3	31,5	69,4	20,00
9	29,5	14,4	9,7	46	1,8	64,6	142,5	55	2,2	48,4	106,9	32,3	71,3	26,9	59,4	22,50
10	32,8	11,1	7,5	57	2,2	55,6	122,6	68	2,7	41,7	92,0	27,8	61,3	23,1	51,1	25,00
11	36,1	8,7	5,9	69	2,7	47,9	105,8	83	3,2	35,9	79,3	24,0	52,9	20,0	44,1	27,50
12	39,4	6,9	4,6	82	3,2	41,3	91,3	98	3,9	31,0	68,4	20,7	45,6	17,2	38,0	30,00
1 inch = 25,4 mm \| 1m = 3.28 ft \| 1 lbs = 0,453 kg

Tüv certification only valid for loading table above.
Loading figures are only valid for static loads.
Loading figures are only valid for single spans with supports at both ends.
All static systems, other than single spans, need an individual structural calculation. Please contact a structural engineer or Prolyte Group for assistance.
Loading figures are calculated according to and in full compliance with European standards (Eurocode).
The self-weight of the trusses is already taken into account.
Loading figures are only valid for the cross sectional orientation of the truss as shown by the icon in the loading table.
The interaction between bending moment and shear force at the connection point is already taken into account.
Truss spans can be assembled from different truss lengths.
Read the manual before assembling, using and loading the truss.
