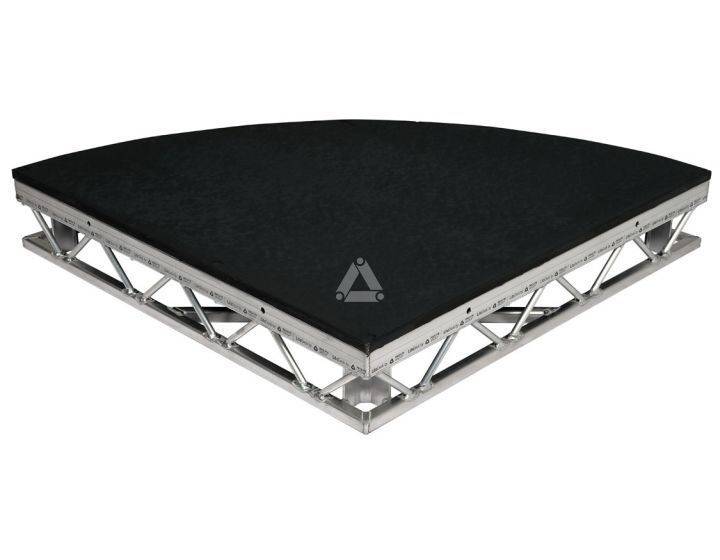

LiteDeck std. quad 1x1m

Catalog number: LD-11M-S-Q
Item code: 115110042

Renowned for enduring performance and smart aesthetic design, LiteDeck is the most popular decking system in the demanding world of touring productions. Tried and tested around the world, it is a lightweight yet robust staging solution with a proven record of reliable performance.

A variety of options for the top board surface completes the LiteDeck range. Provided as standard is our most popular finish, a durable 19 mm plywood painted matte black connected (as with all tops) by a set of bolts which allow removal, maintenance and replacement over the life of the deck. For more elaborate applications, LiteDeck is also available with clear / acrylic tops to allow the transmission of lights from under the stage, or open aluminium mesh tops to facilitate the use of pyrotechnics or smoke effects.

The LiteDeck system is designed to provide a 5 kN/m² uniform load rating in all configurations when used in compliance with our assembly guidelines. Only genuine LiteDeck components should be used, and full design calculations and assembly layouts are available on request.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
LiteDeck std. quad 1x1m
  • Loading capacity 5 kN/m²
  • Weight 48kg, 4x8 unit
  • Aluminium ladder frame side profiles
  • Rounded edge profiles
  • 19mm black coated birch plywood
  • 4 integrated leg pockets
The LiteDeck stage decking system is manufactured from high tensile aluminium alloy grade 6082T6. The material has a 0.2% proof stress of 225MN/m2. The sections are extruded and comply with BSEN755-2.

The decking frame is constructed through the TIG welding process and is carried out in accordance to specifications laid out in BS3019: part 1: Specification for TIG welding of aluminium by welders certified to BS: EN:287-2: Approval testing of welders for fusion welding - part 2: aluminium and its alloys.
  • Lightweight yet robust staging solution
  • Easy convertible to rolling riser system
  • Several types of toppings available
  • Top plate can be removed for repair or maintenance
  • Hard birch plywood topping
  • Wide range of shapes and sizes, allows hundreds of stage configurations to be created
  • Available in either imperial or metric measurements
  • Welded side profiles provide ultimate strength
  • Relatively low height requires little storage space for the decks
  • Easy stacking of decks, easy to forklift
