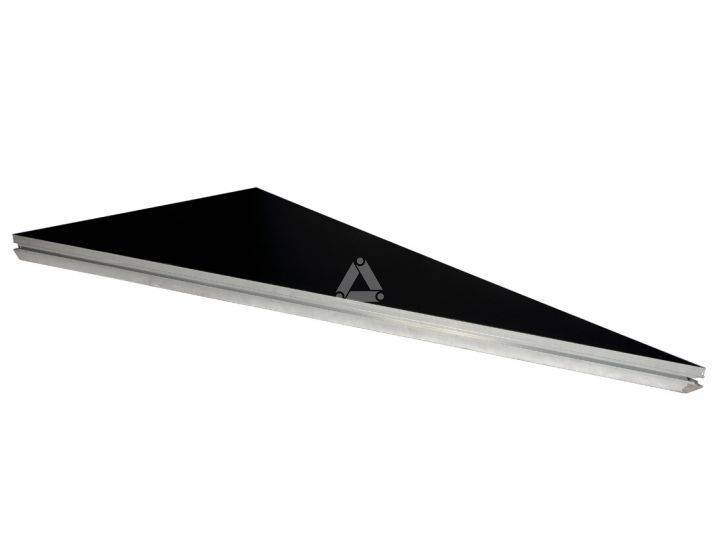

Topline deck triangle R 2x1m

Catalog number: SM-D-T-5R
Item code: 115100014

StageDex can be qualified as the best and most versatile staging system available. The StageDex TopLine deck is a high quality, lightweight deck, offering a birch plywood surface, with water resistant and anti-skidding qualities. The TopLine deck has a reinforced corner, offering a standard spigot entry on the topside of the deck. All decks have a loading capacity of 750kg/m2 and are available in metric and imperial sizes and different shapes. The universal leg fitting fixes with one simple handle.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.

Technical Specification Advantages Downloads


Types	Standard, standard arched, basic
Frame	Aluminium (EN AW 6063 T6)
Top board	Plywood
Legs	48 x 3 mm (EN AW 6082 T6)
Legs with adjustable feet	48 x 3 mm (EN AW 6082 T6), with steel spindle on pvc base
Telescopic leg	48,3 x 4 / 60 x 5 mm (EN AW 6082 T6)
Maximum load	750 kg/m2 UDL
Self weight	-
