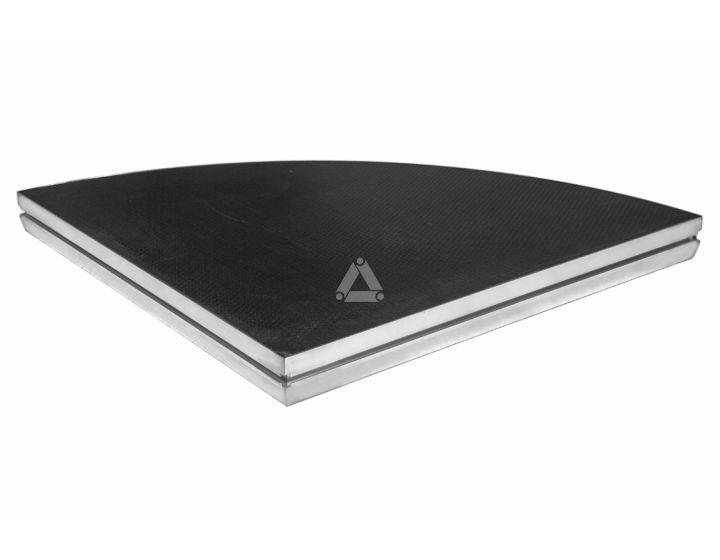

Topline deck 90DGR R100 1x1m

Catalog number: SM-DL-T-R100
Item code: 115100655

StageDex can be qualified as the best and most versatile staging system available. The StageDex TopLine deck is a high quality, lightweight deck, offering a birch plywood surface, with water resistant and anti-skidding qualities. The TopLine deck has a reinforced corner, offering a standard spigot entry on the topside of the deck. All decks have a loading capacity of 750kg/m2 and are available in metric and imperial sizes and different shapes. The universal leg fitting fixes with one simple handle.


Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Topline deck 90DGR R100 1x1m

Types Standard, standard arched, basic
Frame Aluminium (EN AW 6063 T6)
Top board Plywood
Legs 48 x 3 mm (EN AW 6082 T6)
Legs with adjustable feet 48 x 3 mm (EN AW 6082 T6), with steel spindle on pvc base
Telescopic leg 48,3 x 4 / 60 x 5 mm (EN AW 6082 T6)
Maximum load 750 kg/m2 UDL
Self weight -
  • Internal reinforcement of corner
  • Standard spigot entry on the topside of the deck to attach EasyRail system
  • Birch plywood, special water resistant quality
