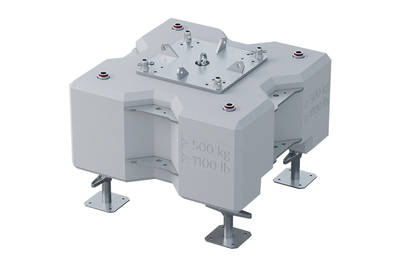

Concrete Ballast Base

The concrete ballast base is made of steel-reinforced concrete, allowing it to withstand heavy loads while remaining resistant to damage.

The high connectivity allows the individual blocks to be stacked together to form one large block of any weight. The connectors allow for both horizontal and vertical connections.

Due to its compact dimensions (800x800x400 cm for the 500kg and 1200x1200x400 cm for the 1250kg) and stackability, transportation is simple and efficient. For handling you can use the hanging point in the middle of the block or the pocket ready for the forklift.

Adjustable “spindles” with a large contact area can be used on uneven surfaces.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Concrete Ballast Base
Technical Specifications - Concrete Ballast Base
Type 500 / 1250 kg
Alloy Concrete / Steel
  • Compact 800x800x400 or 1200x1200x400 steel reinforced concrete block​
  • 500 kg or 1250kg weight​
  • Adjustable spindles​
  • Indoor and outdoor
  • Lifting point in COG​
  • Tower base plate with lugs for steel wires
  • Natural concrete look
