H40R-RMB

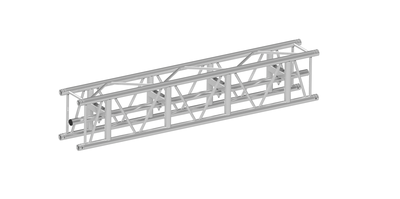

The H40R Middle Beam Raised is a state-of-the-art LED suspension truss that integrates a versatile middle beam within its structure. This middle beam is designed to be adaptable, providing an ideal solution for seamless LED screen installations. It can be used in combination with the standard H40R truss system, ensuring compatibility and flexibility for diverse setup requirements in one grid.

Download the brochure here.

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out contacting our Sales Team.

Technical Specification Advantages

Technical Specifications - H40R-RMB serie
Types	Rectangular (R)
Alloy	EN AW 6082 T6
Main chords	48 x 3 mm
Diagonal Members	20 x 2 mm
Coupling system	CCS6

H40R-RMB Series - Standard available lengths and codes
Metres	Feet	Code
1.00	3.28	H40R-L100-RMB
1.50	4.92	H40R-L150-RMB
2.00	6.56	H40R-L200-RMB
2.50	8.20	H40R-L250-RMB
3.00	9.84	H40R-L300-RMB
4.00	13.12	H40R-L400-RMB

	H40R-RMB - Allowable Loading


						MAXIMUM ALLOWABLE POINT LOADS
		Uniformly Distributed				Centre Point Load				Single Loads Third Points		Single Load Fouth Points		Single Load Fifth Points
		Load								Load per Point		Load per Point		Load per Point
SPAN		UDL		DEFLECTION		CPL		DEFLECTION		TPL		QPL		FPL		SPAN
m	ft	kg/m	lbs/ft	mm	inch	kgs	lbs	mm	inch	kgs	lbs	kgs	lbs	kgs	lbs	total weight
3	9.8	960.9	646.6	7	0.3	2133.7	4709.1	6	0.2	1441.4	3181.2	960.9	2120.8	720.7	1590.6	11.0
4	13.1	718.4	483.4	13	0.5	1708.9	3771.6	10	0.4	1179.7	2603.6	957.9	2114.0	718.4	1585.5	22.0
5	16.4	572.9	385.5	20	0.8	1431.1	3158.4	16	0.6	974.7	2151.2	795.8	1756.4	622.8	1374.5	33.0
6	19.7	475.9	320.2	29	1.1	1228.3	2710.9	23	0.9	847.9	1871.2	672.4	1484.0	526.7	1162.5	44.0
7	23.0	361.4	243.2	40	1.6	1073.4	2369.1	32	1.3	748.8	1652.5	580.7	1281.5	458.6	1012.2	55.0
8	26.2	274.5	184.7	52	2.0	950.9	2098.7	41	1.6	669.0	1476.6	509.6	1124.7	405.1	894.1	66.0
9	29.5	215.0	144.7	65	2.6	851.3	1878.9	52	2.0	603.4	1331.6	452.8	999.4	361.9	798.7	77.0
10	32.8	172.4	116.0	81	3.2	768.6	1696.3	65	2.6	548.2	1209.9	406.3	896.7	326.1	719.8	88.0
11	36.1	140.9	94.8	98	3.9	698.6	1541.7	78	3.1	501.1	1105.9	367.4	810.8	296.0	653.3	99.0
12	39.4	116.9	78.7	116	4.6	638.4	1408.9	93	3.7	460.3	1015.9	334.2	737.6	270.2	596.3	110.0
13	42.6	98.3	66.1	137	5.4	585.9	1293.2	109	4.3	424.5	937.0	305.6	674.4	247.8	546.9	121.0
14	45.9	83.5	56.2	158	6.2	539.8	1191.3	127	5.0	392.9	867.1	280.6	619.2	228.1	503.5	132.0
15	49.2	71.5	48.1	182	7.2	498.7	1100.6	146	5.7	364.6	804.6	258.4	570.4	210.7	464.9	143.0
16	52.5	61.7	41.5	207	8.1	461.8	1019.3	166	6.5	339.1	748.3	238.7	526.8	195.0	430.4	154.0
17	55.8	53.6	36.1	234	9.2	428.5	945.6	187	7.4	315.9	697.2	220.9	487.5	180.9	399.2	165.0
18	59.0	46.9	31.5	262	10.3	398.1	878.6	210	8.3	294.7	650.4	204.8	452.0	168.1	370.9	176.0
19	62.3	41.1	27.7	292	11.5	370.2	817.1	233	9.2	275.2	607.4	190.1	419.5	156.3	345.0	187.0
20	65.6	36.2	24.4	323	12.7	344.6	760.4	259	10.2	257.2	567.6	176.6	389.7	145.5	321.1	198.0
