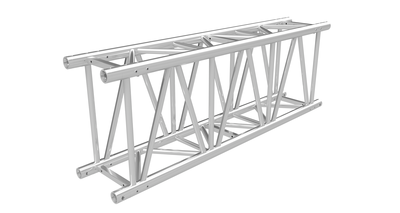

The Prolyte M100RV Truss serie is the stronger add on to the 100 cm series. The design of this truss not only reflects the Prolyte philosophy of making user-friendly products, it also underscores the unrivalled technological knowledge and experience Prolyte has gained over the years.
The M100RV truss provides massive strength for a range of application possibilities within a large construction, such as a roof system or pre rig mother grid. With its superior loading capacity the M100RV truss is up to 3 times stronger than the B100RV truss. For example, on a span of 30 metres you still can apply a point load of 5000kg. It is constructed of main chords (100 x 8 mm) and diagonal members (50 x 4 mm). The connection will be done with the CCS10 conical connection system, which avoids having deflection at your connection point and is fast and easy to assemble. Due to its 4-sided webbing the truss can absorb vertical as well as horizontal loads, which makes it ideal for outdoor or 3 dimensional structures. Spans up to 40 metres are no challenge for this truss.
The M100RV can optionally be equipped with castor wheel sets.
