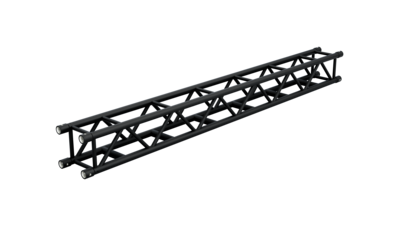

The R30V series truss is a high preformance truss which is constructed of mainchords (50x5 mm) and diagonal members in the sides (25x3 mm). On the top and bottom surface it has straight members ( 25x3 mm top and 48x3 mm bottom). The truss modules makes use of the heavy duty CCS7 coupling system. Due to the straight members in the bottom side, it is possible to suspend loads in the centerline of the truss. The exceptional strength in relation to the relatively small dimensions of this type of truss makes it the ideal solution for structures where high performace is required. Download the brochure here.
MAXIMUM ALLOWABLE POINT LOADS
Uniformly Distributed
Load
Centre Point Load
Single load third points
Load per point
Single load fourth points
Single load fifth points
SPAN
UDL
DEFLECTION
CPL
TPL
QPL
FPL
m
ft
kg/m
lbs/ft
mm
in
kg
lbs
Total weight
3
9.8
1532.2
1031.0
10
0.4
2367.5
5225.0
8
0.3
1559.5
3441.9
1259.9
2780.5
1070.9
2363.5
39.0
4
13.1
1146.5
771.4
18
0.7
1930.9
4261.4
15
0.6
1275.2
2814.3
1061.5
2342.7
841.9
1858.2
52.0
5
16.4
842.6
567.0
28
1.1
1627.1
3591.0
23
0.9
1095.1
2416.9
918.0
2026.1
704.2
1554.2
65.0
6
19.7
581.9
391.5
41
1.6
1403.0
3096.4
33
1.3
957.9
2114.2
777.8
1716.7
603.9
1332.8
78.0
7
23.0
424.6
285.7
56
2.2
1230.4
2715.5
45
1.8
849.7
1875.3
673.1
1485.6
527.4
1164.0
91.0
26.2
322.6
217.0
73
2.9
1093.0
2412.3
58
2.3
761.9
1681.6
591.7
1306.0
467.0
1030.7
104.0
9
29.5
252.6
170.0
92
3.6
980.8
2164.6
74
689.1
1520.9
526.5
1162.0
418.0
922.5
117.0
32.8
202.6
136.3
114
4.5
887.1
1957.9
91
627.6
1385.2
472.9
1043.7
377.3
832.7
130.0
11
36.1
165.5
111.4
137
5.4
807.6
1782.3
110
4.3
574.9
1268.8
428.0
944.5
342.9
756.8
143.0
12
39.4
137.4
92.4
164
6.5
739.0
1631.0
131
5.2
529.0
1167.6
389.9
859.9
313.4
691.6
156.0
13
42.6
115.4
77.7
192
7.6
679.1
1498.8
154
6.1
488.7
1078.5
365.5
768.8
287.7
634.9
169.0
14
45.9
98.1
66.0
223
8.8
626.3
1382.2
178
7.0
452.9
999.5
327.5
722.7
265.0
584.9
182.0
49.2
84.0
56.5
256
10.1
579.1
1278.2
205
8.1
420.7
928.6
301.8
666.1
244.9
540.6
195.0
