System Description

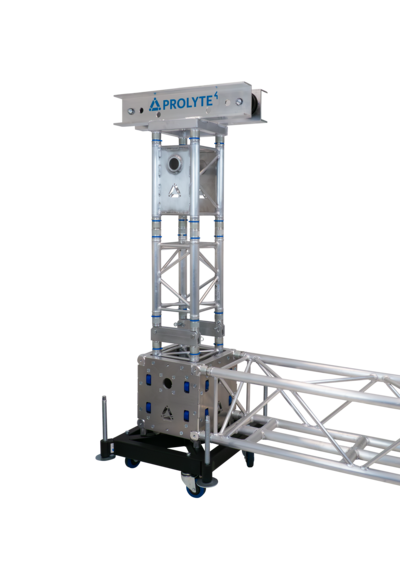

The Verto HT tower is an upgrade on the MPT Tower. It is based on Verto H30V truss sections and uses a new type of sleeve block that fits the 40 square series (Verto or conical) truss on all four sides by means of bolted half couplers.
The HT sleeve block is a fully bolted structural element, making it much stronger and more precise than conventional welded versions. Compared to the current MPT sleeve block, the HT sleeve block is reduced in size and has the same measurements as the standard H40V box corner. The transfer of forces is optimised, which makes the element as strong as the truss is; creating a significant increase of, for example, cantilever loads.
Also, a dedicated guywire attachment is integrated into the sleeve block. The sleeve block has wire thread holes on all 4 sides, which are suitable to attach eye bolts that can take guywires to stabilize your system.
New hinge system
The hinge set is completely redesigned, to make it more user friendly and to improve the force transfer during the erecting of the tower. The couplers of the hinge part are automatically in the right position to take connectors of the two main chords when the complete tower reaches the final vertical position.
HT Tower dead hang solution
The HT tower also has a new dead hang solution. The dead hang of the system can now be done by a dead hang pin which will be placed through the sleeve block in a special Verto H30V tower section with a length of 50 cm. This dead hang solution is quick, lightweight, easy to attach and protects your system against uplift. The top section (VER-009S) and base section (VER-004) can facilitate the use of either a hand winch or a chain hoist.
