Mini Flat Roof



The Mini-Flat Roofs are versatile structures based on standard truss elements and fixed welded corners. They can be used as small event stages, FOH structure or as a detached cover for your terrace.

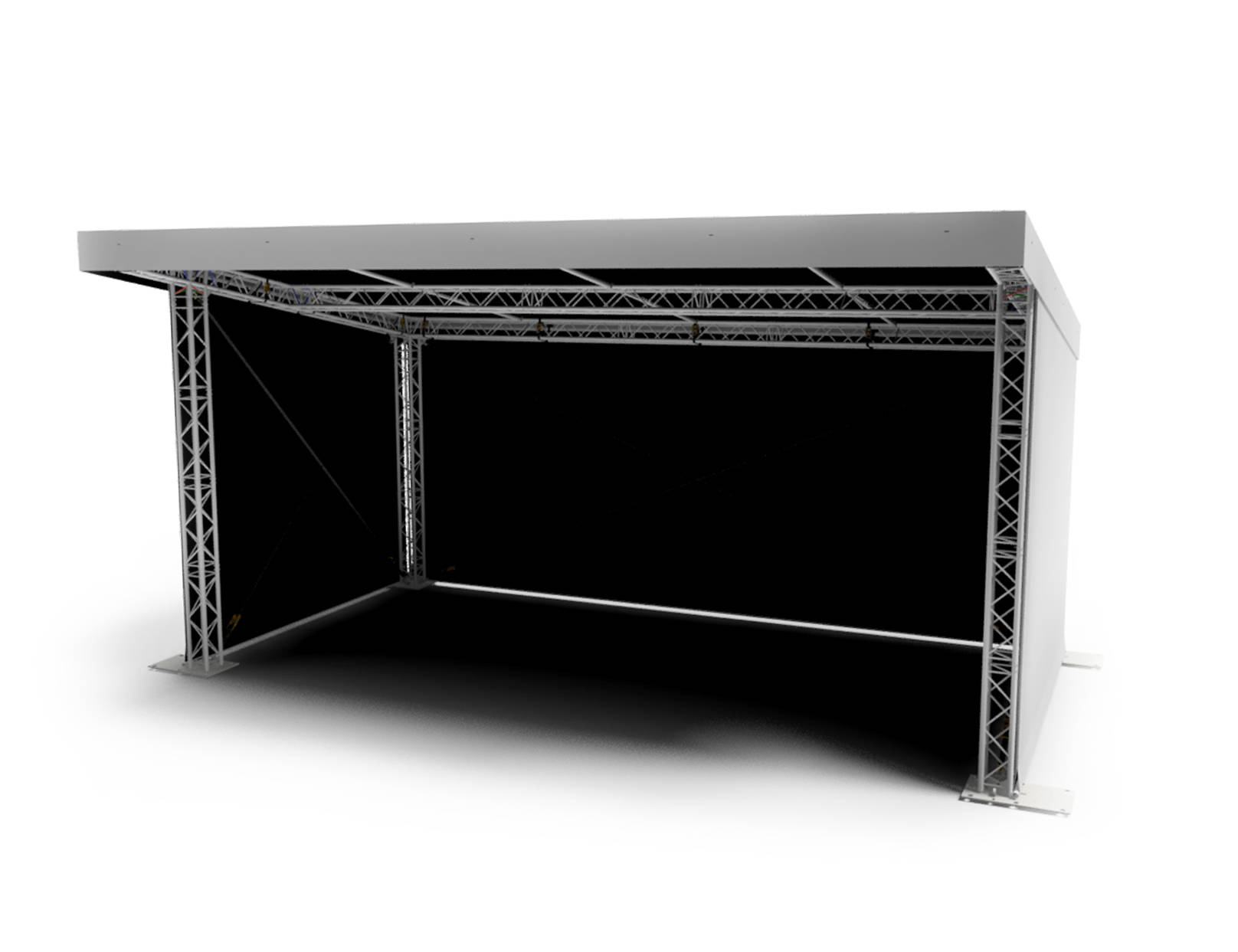

The three standard sizes: 8x6m (in the picture), 6x4m and 4x4m, are constructed of H30V multi purpose truss elements. The structure stands on special desinged steel base sections with integrated rigging points. Due to its size you can put the ballast immediatly on top of the base. It also has the possibility to use them in combination with ground anchors.

Different configurations can be achieved by just adding standard truss elements, which makes it easy to change the size.
All available standard structures are calculated according the the latest European regulation for temporary structures. Other sizes will be available on request.


Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Mini Flat Roof
Technical specifications - Arc Roof
Dimensions 8 x 6 m    (26’3” x 19’8”)
6 x 4 m    (19’8” x 13’1”)
4 x 4 m    (13’1” x 13’1”)
Loading capacity (UDL)          80 kg p/mtr
250 kg PA load
Total weight 500 kg
Transportation volume 16m³
Max. wind speed 28,4 m/second, 63,3 mph
  • Easy to handle
  • Standard components
  • Ideal for smaller events
