CLT Roof

Catalog number: -
Item code:

System description

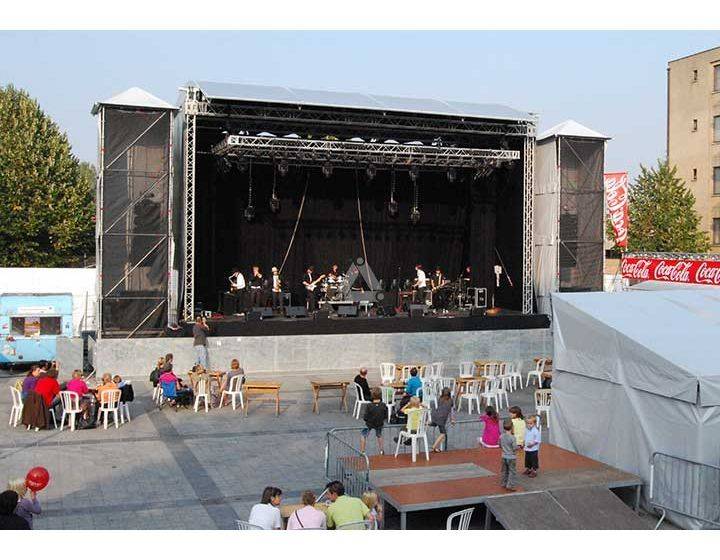

The CLT Roof is a tower-based structure with a curved roof. It is based on the standard MPT Roof, which can easily be transformed into a CLT Roof simply by adding a different set of top units. The CLT rooftop section is based on arched H30D truss with integrated keder profiles to mount the canopy. These arches are supported by special frames which are mounted on the basic grid trusses.


Catalog number: - Item code:

System description
The CLT Roof is a tower-based structure with a curved roof. It is based on the standard MPT Roof, which can easily be transformed into a CLT Roof simply by adding a different set of top units. The CLT rooftop section is based on arched H30D truss with integrated keder profiles to mount the canopy. These arches are supported by special frames which are mounted on the basic grid trusses.

Downloads:
Prolyte CLT Roof product sheet

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
CLT Roof
Technical specifications - CLT Roof
Dimensions 12 x 10 m, 12 x 8 m,
(39’4” x 32’9”), (39’4” x 26’3”)
Loading capacity (UDL) 12 x 10 m approx. 2470kg
12 x 8 m approx. 2470kg
Total weight approx. 1900 kg / 4188 lbs
Transportation volume approx. 32 m3 / 1130 cu. ft.
Max. wind speed 28,4 m/second, 63,3 mph

Including

  • Tension gear and steel wires
  • Structural report
  • Easy to handle, quick setup
  • Extra options available
