Giant Arc Roof

Catalog number: -
Item code:

System description

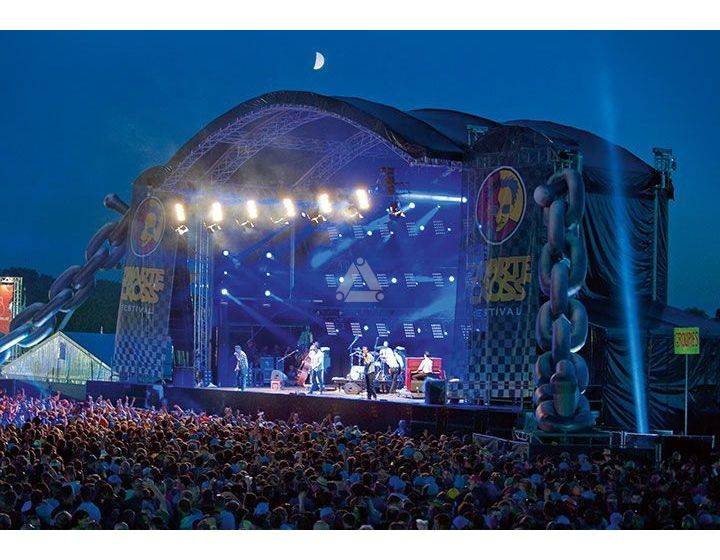

The Giant ARC Roof is a tower-based structure that is constructed using 3-to-5 arches. Straight truss sections, interconnected with bottom hinges and topside spreader plates, create the arch needed over the complete span. Two steel wires per span absorb horizontal forces caused by the loading. The arches are connected to either a standard ST or CT tower.

Downloads
Prolyte Giant Arc Roof product sheet
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
Giant Arc Roof
Technical specifications - Giant Arc Roof
Please consult Prolyte for up-to-date information on loading capacity, wind speed, total weight and transportation volume in line with the Eurocode regulations.
• Tension gear and steel wires
• Structural report
  • Extra options available
  • Available in two different sizes
  • Curved design
