MPT Roof

Catalog number: -
Item code:

System description

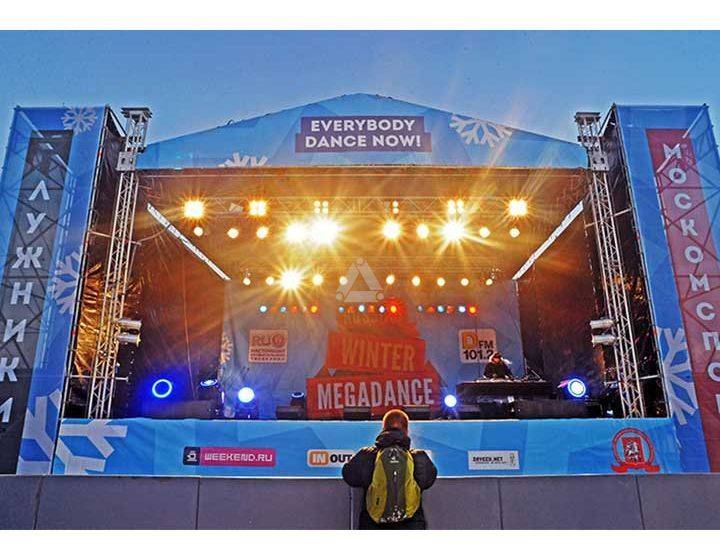

The MPT Roof is a tower-based structure with a pitched roof, a design which guarantees optimum strength. Primarily configured from standard trusses, the MPT Roof is available in three different sizes. However, the unrivalled flexibility of the system affords nearly 40 calculated building varieties or setup possibilities for your MPT Roof. At ProlyteStructures Roof Systems, we are aware that every season and every event brings different demands, and accordingly we have designed the MPT Roof to accommodate an extraordinary range of applications.

Downloads
MPT Roof 10x8m data sheet
MPT Roof 12x10m data sheet


Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
MPT Roof
Technical specifications - MPT Roof
Dimensions 12 x 10 m, 10 x 8 m
(39’4” x 32’9”), (32’9” x 26’3”)
Loading capacity (UDL) 12 x 10 m approx. 3950kg
10 x 8 m approx. 4500kg
Total weight 12 x 10 m approx. 2400kg
10 x 8 m approx. 2100kg
Transportation volume 12 x 10 m approx. 40m³
10 x 8 m approx. 32m³
Max. wind speed 28,4 m/second, 63,3 mph

Including

  • Tension gear and steel wires
  • Structural report
  • Designed to offer optimum strength
  • Versatile applications
  • Extra options available
