Space Roof

Catalog number: -
Item code:

System description

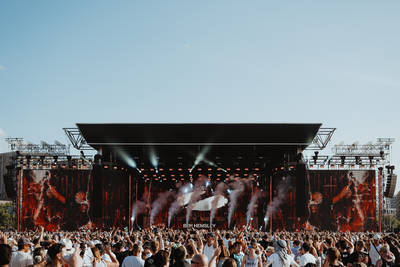

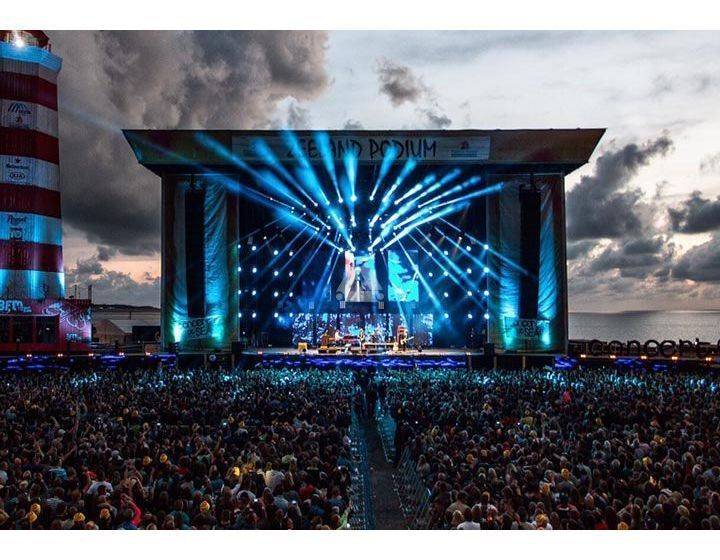

The Space Roof is a modular roof system based on a space frame structure. The roof can be suspended from standard Prolyte CT towers. The aluminium profiles combine with special node points to create a roof structure of any desired size or shape. The Space Roof can be built up to 37 x 22 meters in size. The specially designed top canopy guarantees efficient water drainage. Due to the complexity and size of the Space Roof, quotations are made on request only, allowing us to match your requirements with the possibilities this system offers.

Download
Prolyte Space Roof product sheet

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.

Technical Specification Advantages

Technical specifications - Space Roof
Dimensions	37 x 22m, 31 x 20m, 31 x 16m other sizes on request
Loading capacity (UDL)	max. 30000 kg
PA Loads	Additional PA load near front tower 4000 kg per side
Total self weight	approx. 35000 kg (max. size)
Max. wind speed	36,9m/second, 82,5 mph

Including

Tension gear and steel wires
Structural report according to DIN 4112 / EN13814 C
Ballast solution
Rain gutter at front side

Modular roof system, modular sizes possible
Extremely high load-bearing capacity
Efficient transportation due to very compact transport volume (approximately 1/6th of a comparable truss roof)
Integrated rigging points

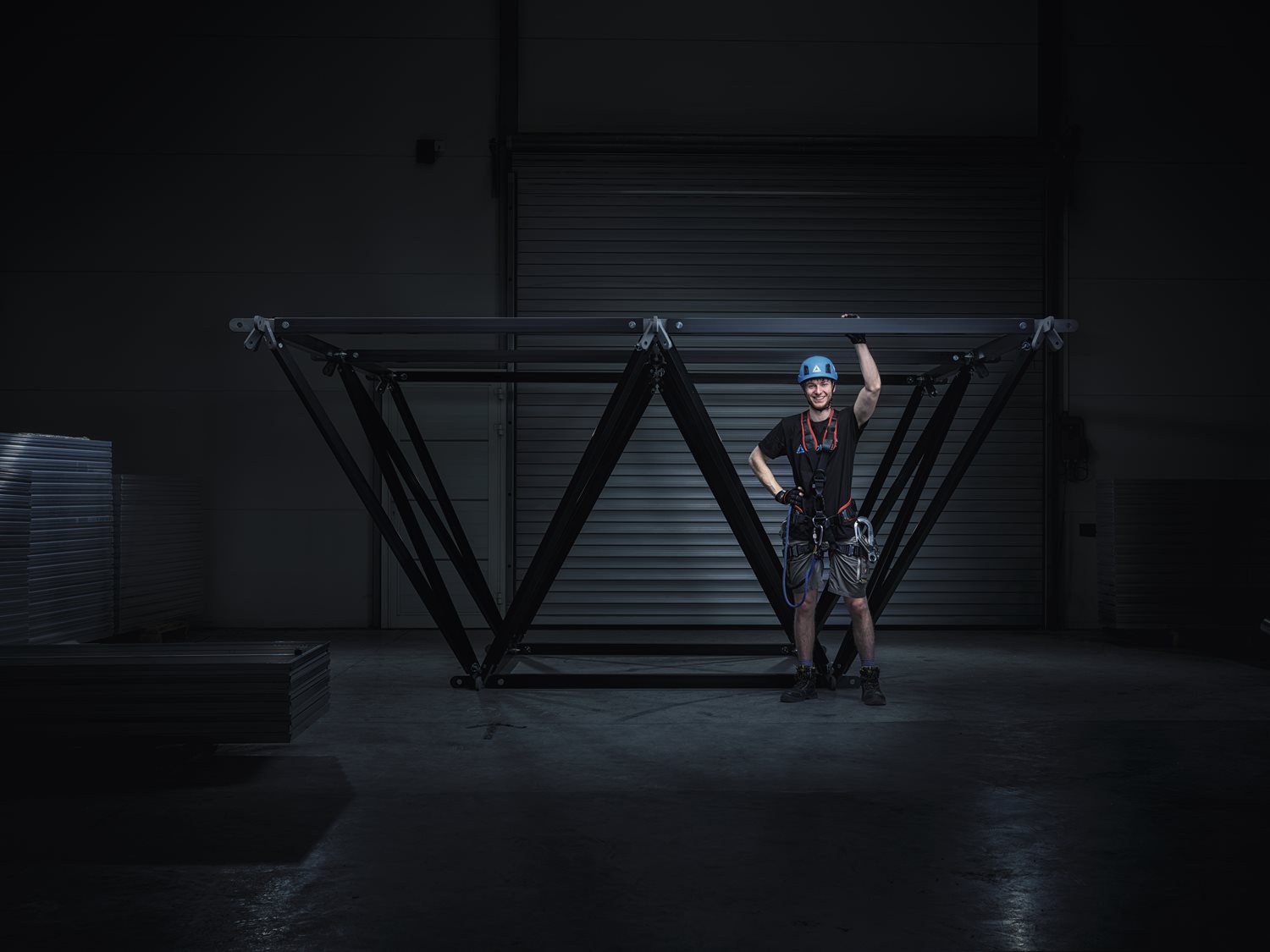

Safe and easy rigging access due to 2 meters high frame and 8 centimeter wide profiles.
Measurements comply with standard scaffolding systems
Stage sub-structure needs minimum amount of diagonals, allowing for easy creation of corridors underneath
