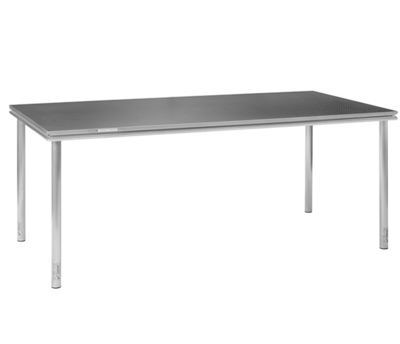

GM5 Stage Deck

GM5 stage deck ensures easiness of handling. With a self-weight of only 28kg for a standard 2x1 meter deck the weight is lowered with 7kg against the Prolyte Basicline deck and 10kg against the Topline deck.

Additionally, it comes equipped with a built-in pocket for a secure grip, facilitating effortless transportation. The surface features a non-slid hexagon layer, guaranteeing safety in various environments.

The GM5 deck boasts an impressive load capacity of 500 kg/m² considering its lightweight. The universal leg fitting accommodates both square as well as round leg types.

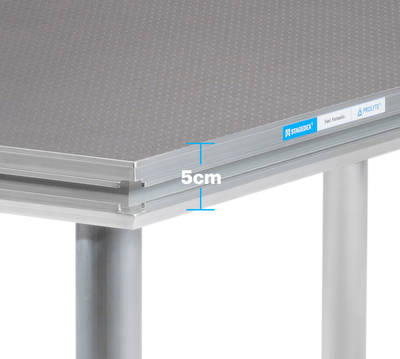

With a total deck height of only 5 cm, it stands out as one of the lowest profiles available on the market, optimizing storage space and enhancing moveability for your company and crew.

DOWNLOAD THE GM5 PRODUCT RANGE BROCHURE HERE .

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out contacting our Sales Team.

Technical Specification Advantages

Technical Specifications
Shapes	Rectangular, Square
Frame	Aluminium (EN AW 6082-T6)
Top board	Sandwich; Plywood, EPS
Legs	48 x 3 mm (EN AW 6082-T6)
Legs with adjustable feet	48 x 3 mm (EN AW 6082-T6), with steel spindle on pvc base
Telescopic legs	48 x 4 / 60 x 5 mm (EN AW 6082-T6)
Maximum loa	500kg/m² UDL
Self weight	28kg

Features an ultra-slim design, standing as one of the thinnest decks on the market with a total height of just 5 cm.
Prolyte's lightest deck, weighing only 28 kg, offers exceptional portability.
Combining its lightweight construction with an impressive load capacity, the GM5 deck supports up to 500 kg/m'.
Enhanced stiffness which ensures the deck remains stable.
Same leg pocket compatibility with all Prolyte standard Stagedex legs.
