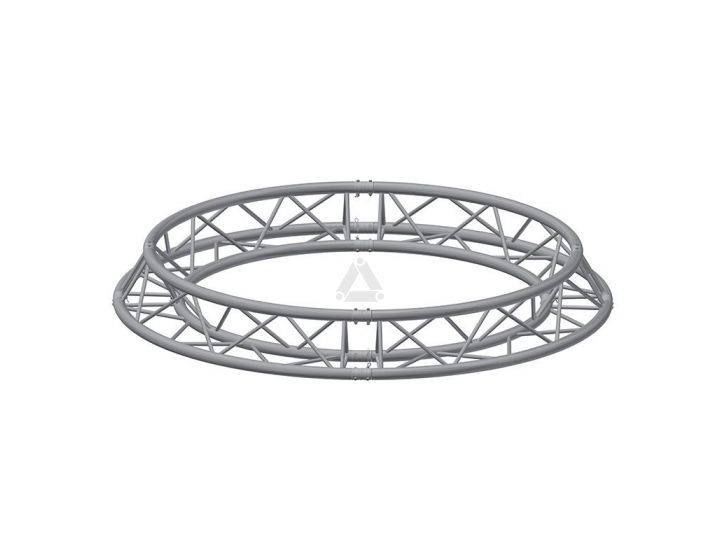

H40D Triangular Circle Truss

Catalog number: H40D-R200-4
Item code: 111060275

H40 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss circles are very measure steady and can be combined with any length or corner.
Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.
Contact us
H40D Triangular Circle Truss
Technical Specifications - H40 Series
Alloy EN AW 6082 T6
Main Tubes 48 x 3 mm
Braces 20 x 2 mm
Coupling System CCS6

H40D Circular truss - Allowable Loading



3 Suspension Points

4 Suspension Points

6 Suspension Points

8 Suspension Points

10 Suspension Points

Diameter

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

UDL

CPL

m

ft

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

kg/m

lbs/ft

kg

lbs

4

13.1

179

120,8

521

1149,1

304

204,6

717

1582,1

573

385,8

1007

2223,4

842

567,0

1181

2607,6

1106

744,4

1286

2838,1

6

19.7

94

63,3

390

861,4

170

114,2

565

1247,4

344

231,7

859

1897,0

526

353,7

1060

2339,4

705

474,3

1190

2627,1

8

26.2

58

38,7

312

687,7

109

73,3

466

1028,4

235

157,9

749

1653,3

370

249,2

961

2120,7

506

340,5

1108

2444,9

10

32.8

38

25,8

259

571,5

76

51,0

396

874,0

172

115,6

619

1367,4

279

187,8

833

1838,9

388

261,2

1036

2286,0

12

39.4

27

18,2

221

488,3

52

35,2

329

726,1

122

82,2

512

1129,6

220

147,8

691

1525,0

311

209,0

868

1917,2

14

45.9

20

13,2

191

422,5

38

25,3

275

607,3

89

59,8

434

958,2

161

108,1

589

1299,6

253

170,2

742

1637,3


  • This loading figures is based on Uniformly Divided Suspension Points and a suspended load in each of the fields. In all other cases, this loading data is NOT valid.
  • If loads are unevenly divided, instability will occur. For more details and loading figures of other diameters, please visit our website.
  • The absence of diagonal braces at the top and/or bottom side of the truss means a dramatic reduction in the allowable loading; a structural report per situation is required for these models.
  • Loading figures are based on Eurocode; to comply with BS 7905-2 / ANSI E1.2-2006 / CWA 15902-2, the loading data must be multiplied by 0.85.
  • Truss orientation apex-up/down. Truss 100% horizontal.
  • Fool proof assembly
  • Light weight construction
  • Arc sections can be replaced
