Arc Roof

System Description

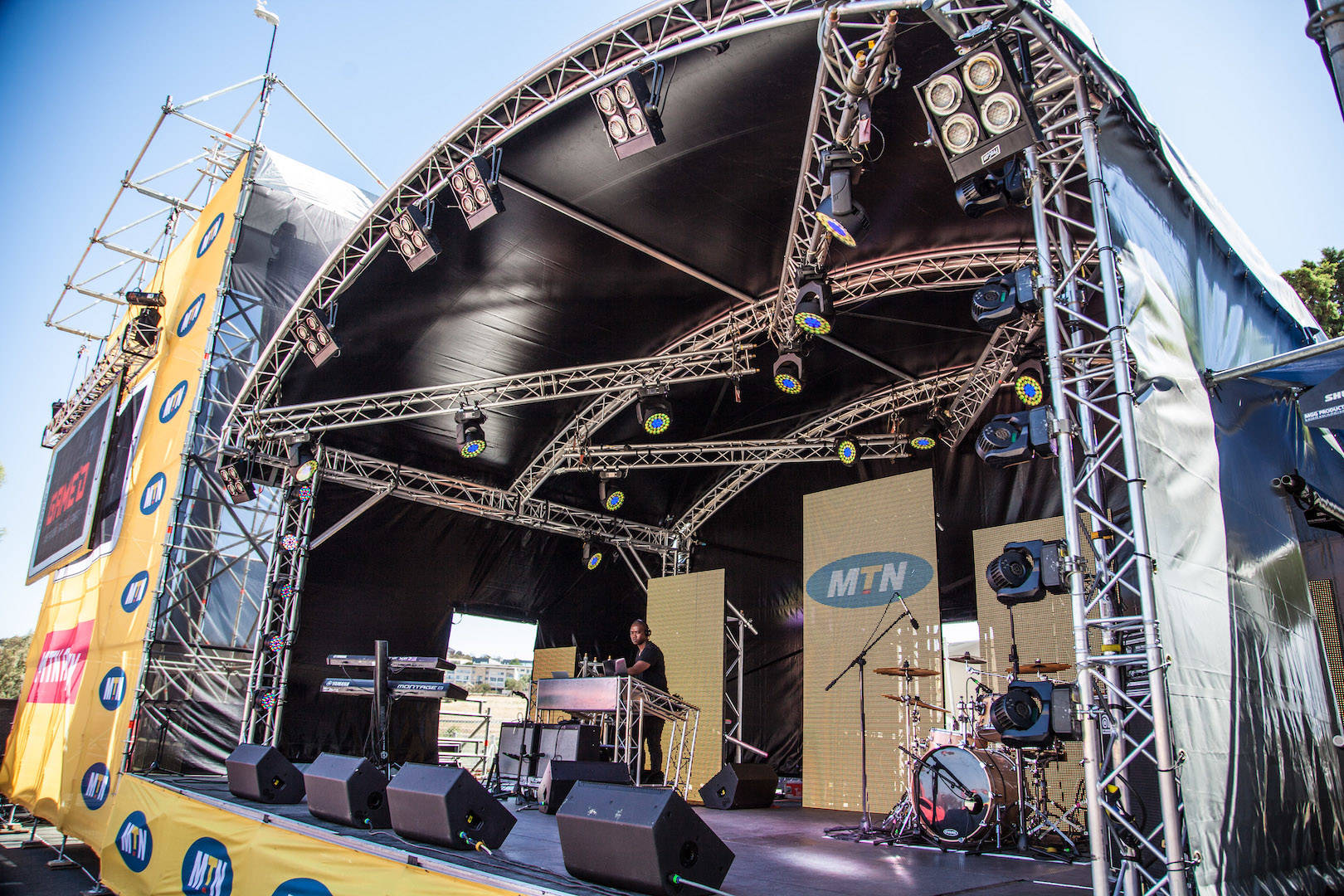

The Arc Roof is a fixed construction, based on three inward-curving trusses that are mounted to side masts. Special corners connect the arches to the main grid. Different configurations are made possible by simply changing the arches. The arched trusses have a keder profile on top for fiting the optional canopy.

Download
Arc Roof product sheet 6x4
Arc Roof product sheet 8x6
Arc Roof product sheet 10x8

ARC ROOF OPTIONS:

Our Arc Roof has different additional options that you can add to the base of the roof. You can select each of them to donwload the options available.

ARC ROOF 6X4 SOUNDWING
ARC ROOF 6X4 GROUNDRING
ARC ROOF 6X4 LAYHER STAGE
ARC ROOF 6X4 LAYHER + SOUNDWING
ARC ROOF 6X4 STAGE FRAME B
ARC ROOF 6X4 SOUNDWING + EASY FRAME B

Find a Local Dealer

Need help?

Need advice about one of our products or services? Find out on our Prolyte Campus page.

Configurator Technical Specification Advantages

Technical specifications - Arc Roof
Dimensions	10 x 8 m (32’9” x 26’3”) 8 x 6 m (26’3” x 19’8”) 6 x 4 m (19’8” x 13’1”)
Loading capacity (UDL)	10 x 8 m approx. 2450kg 8 x 6 m approx. 1950kg 6 x 4 m approx. 1800kg
Total weight	10 x 8 m approx. 1200kg 8 x 6 m approx. 800kg 6 x 4 m approx. 600kg
Transportation volume	10 x 8 m approx. 32m³ 8 x 6 m approx. 20m³ 6 x 4 m approx. 16m³
Max. wind speed	28,4 m/second, 63,3 mph
